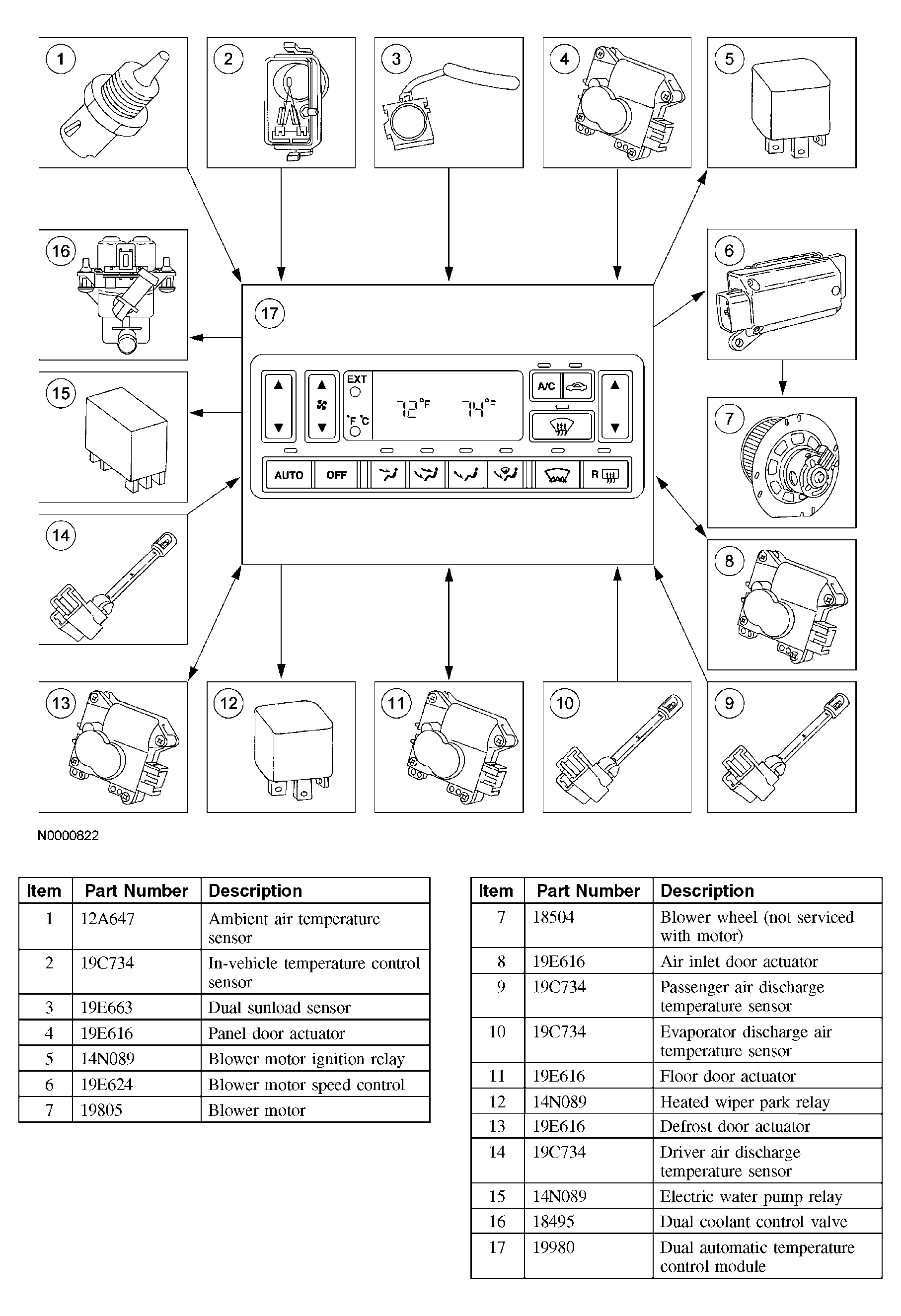

Climate Control System Electrical Components - Directly Linked to DATC Module

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
