Coolant Control Valve

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

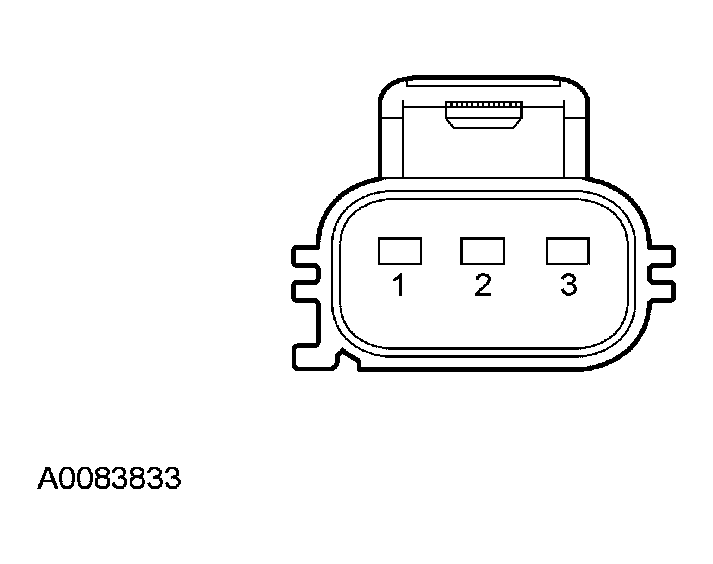

Fig 1: Identifying Coolant Control Valve Connector Pins
G03998099Courtesy of FORD MOTOR CO.
Coolant control Valve Pins Resistance
1 and 2 10-23 ohms
2 and 3 10-23 ohms
