Air Conditioning (A/C) System Recovery, Evacuation and Charging: Notes
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING SPECIAL TOLL SPECIFICATIONS
| R-134a Refrigerant Center 176-00002 or equivalent | |
| R-134a Refrigerant Center 023-00174 or equivalent | |
| R-134a Manifold Gauge Set 023-00047 or equivalent | |

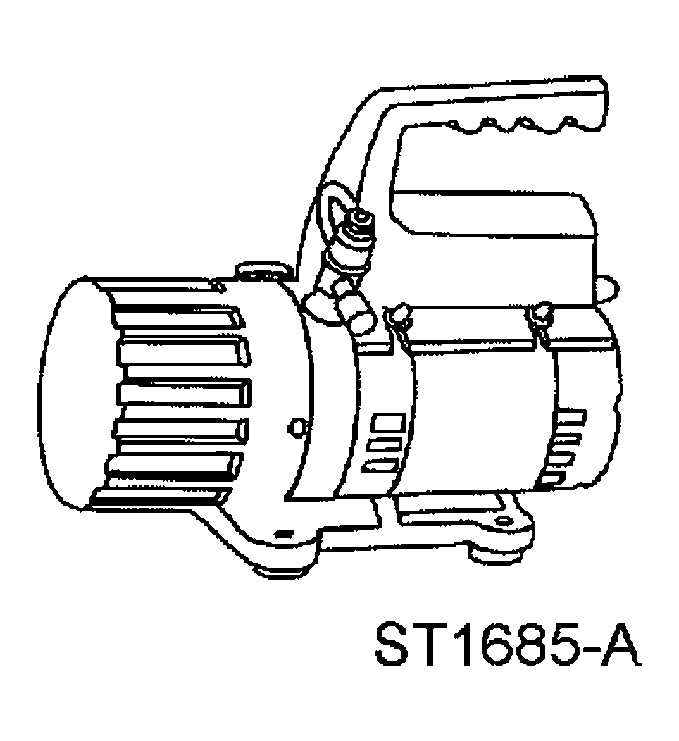

| 1.2 CFM Vacuum Pump 023-00162 or equivalent | |

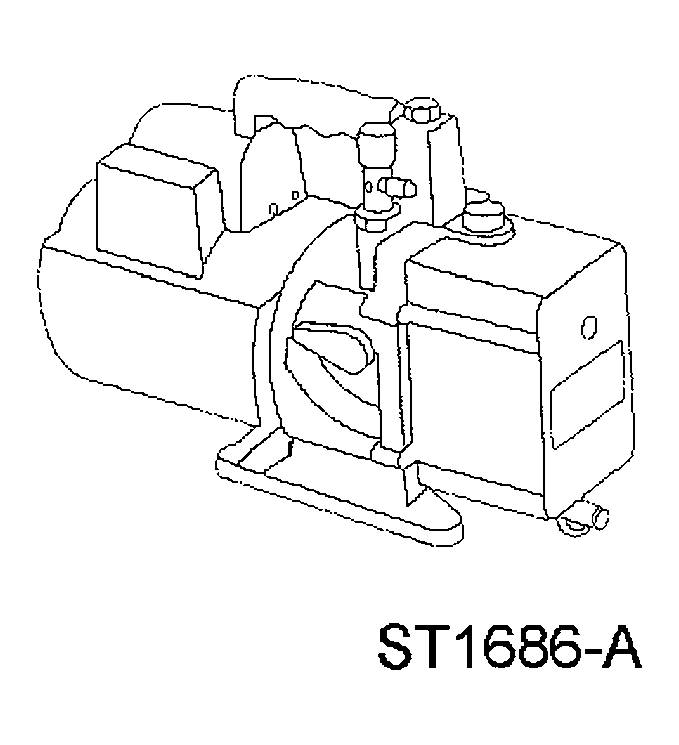

| 4.0 CFM Vacuum Pump 023-00163 or equivalent | |

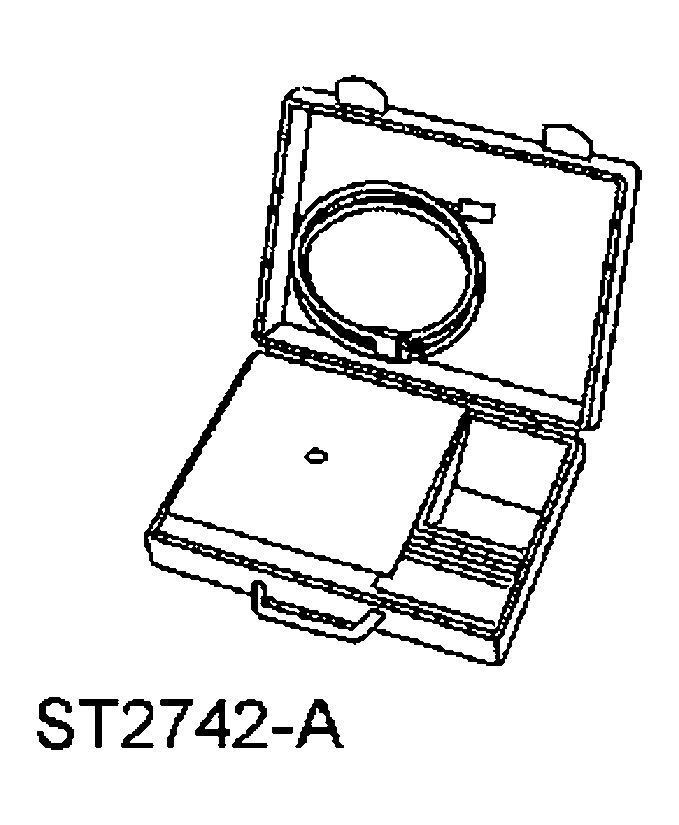

| Automatic Refrigerant Charging Meter 023-00155 or equivalent |
AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D | WSH-M1C231-B |
