Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

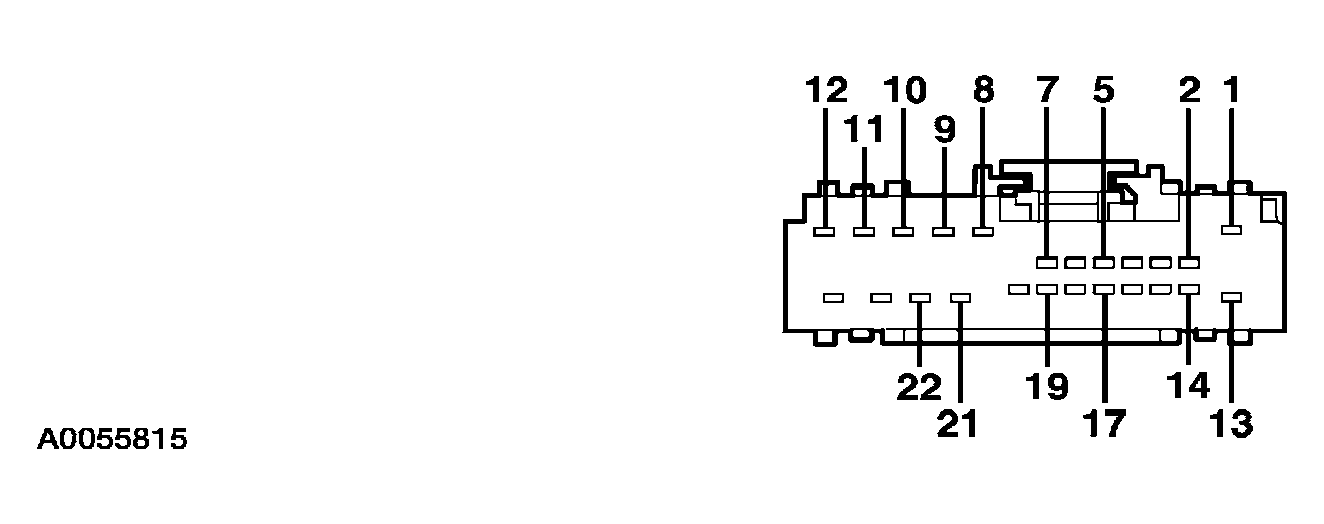

Fig 1: Identifying Navigation System Module C4209 Connector Pins (1 Of 2)

Courtesy of FORD MOTOR CO.

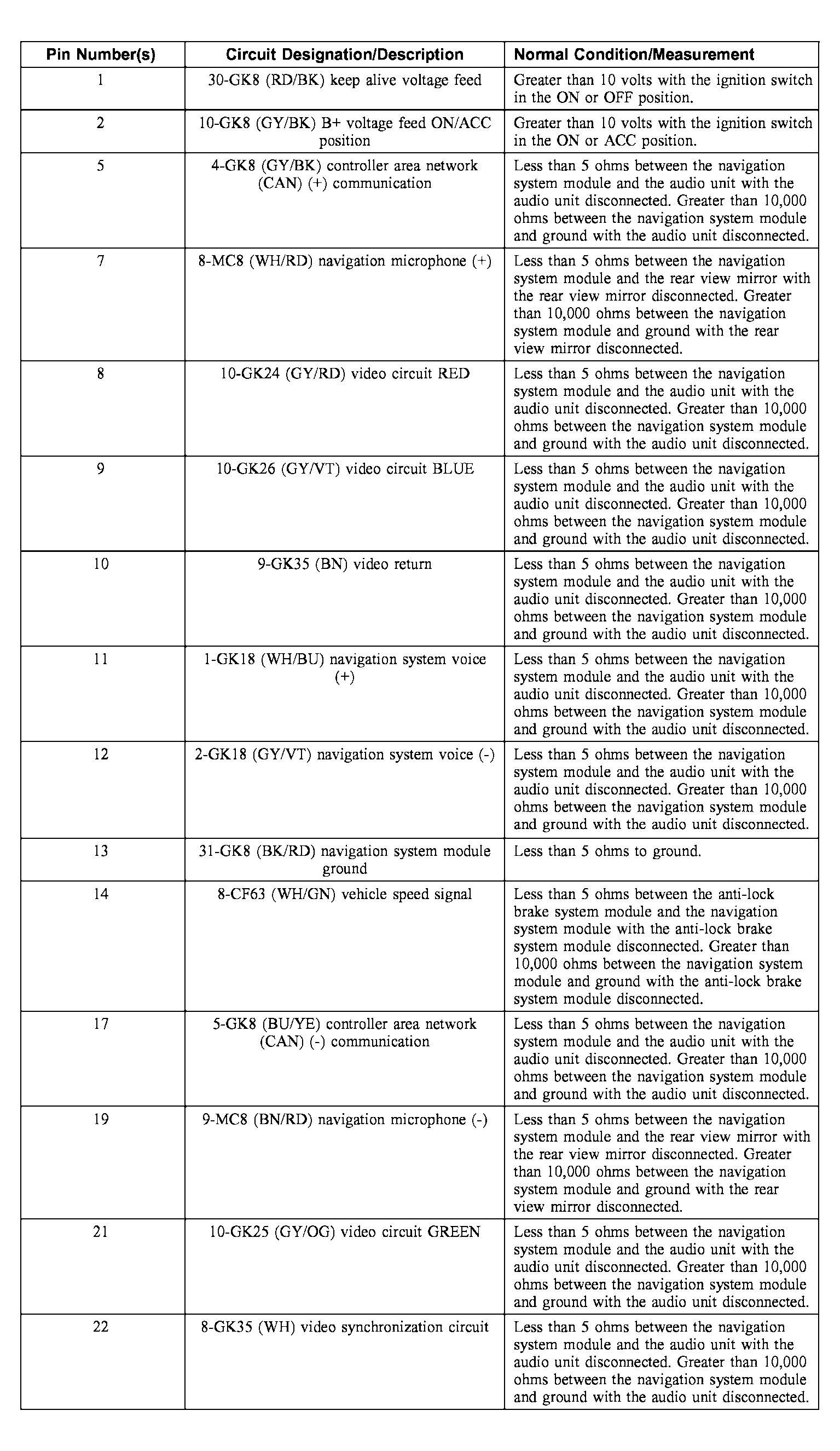

Fig 2: Identifying Navigation System Module C4209 Connector Pins (2 Of 2)

Courtesy of FORD MOTOR CO.

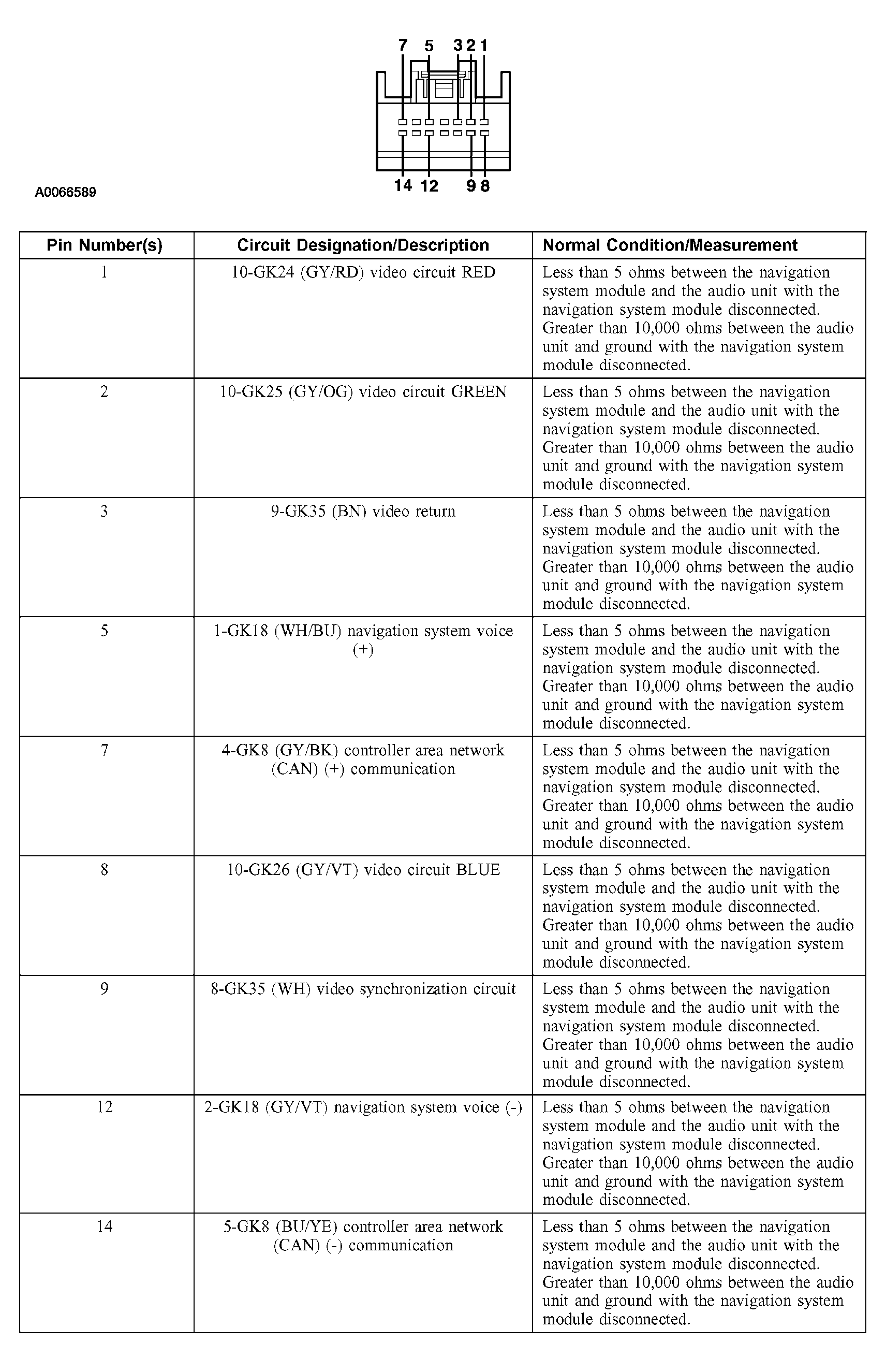

Fig 3: Identifying Audio Unit C2253c Connector Pins

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Audio Unit C2253a Connector Pins

Courtesy of FORD MOTOR CO.

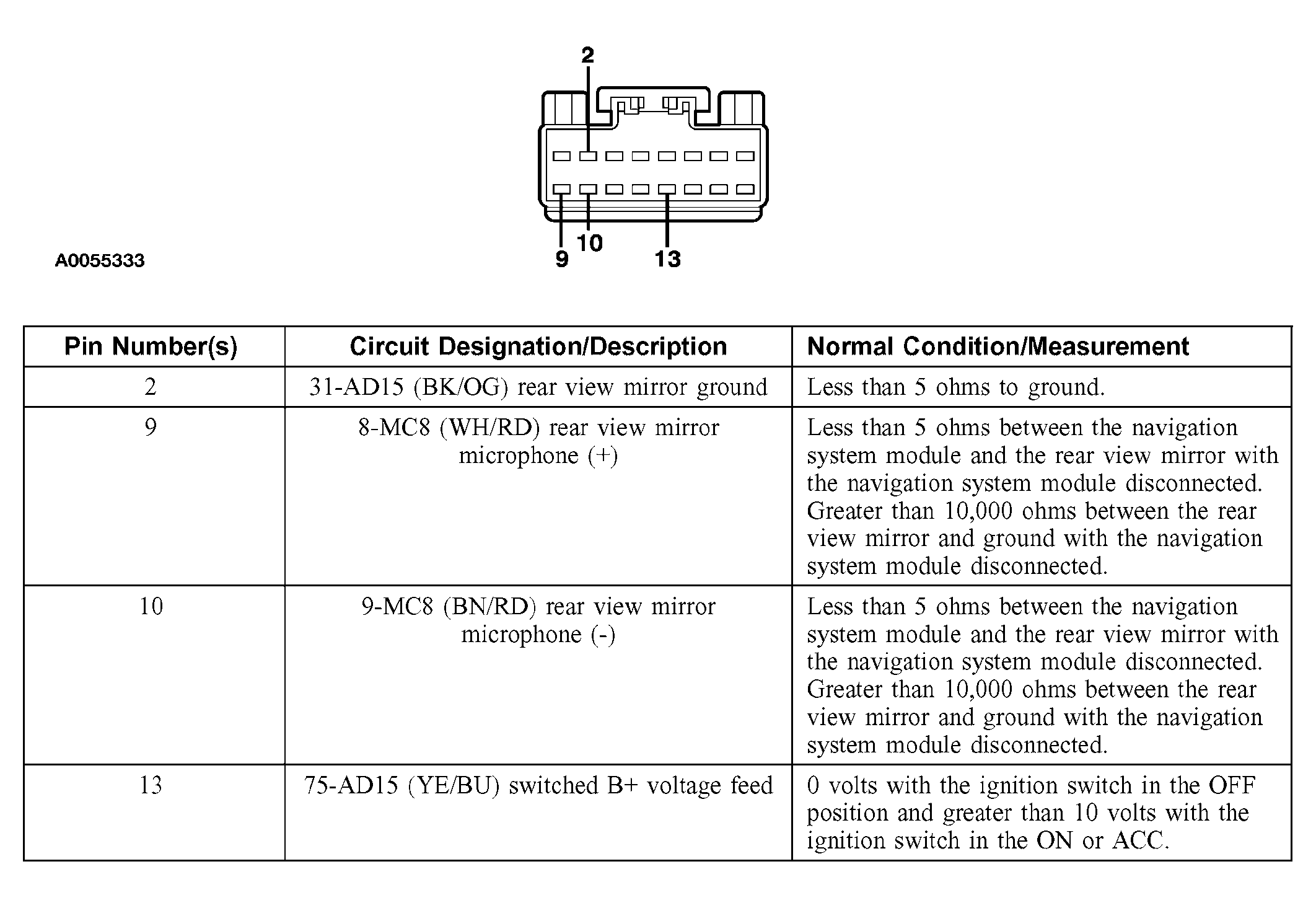

Fig 5: Identifying Rear View Mirror C911 Connector Pins

Courtesy of FORD MOTOR CO.

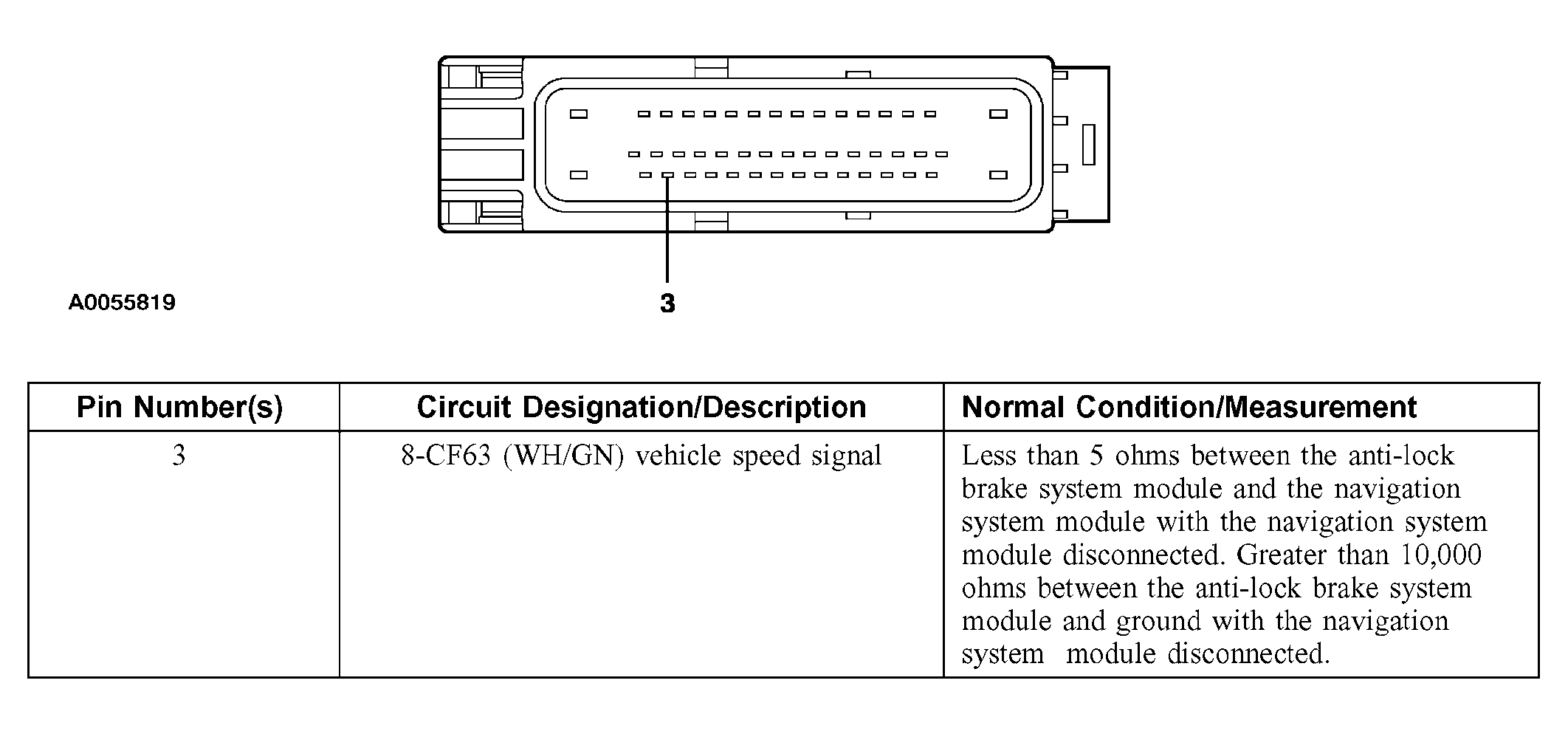

Fig 6: Identifying Anti-Lock Brake System Module With Stability Assist C155 Connector Pins

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Anti-lock Brake System Module C155 Connector Pins

Courtesy of FORD MOTOR CO.
