Driver Power Control Switch C360

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

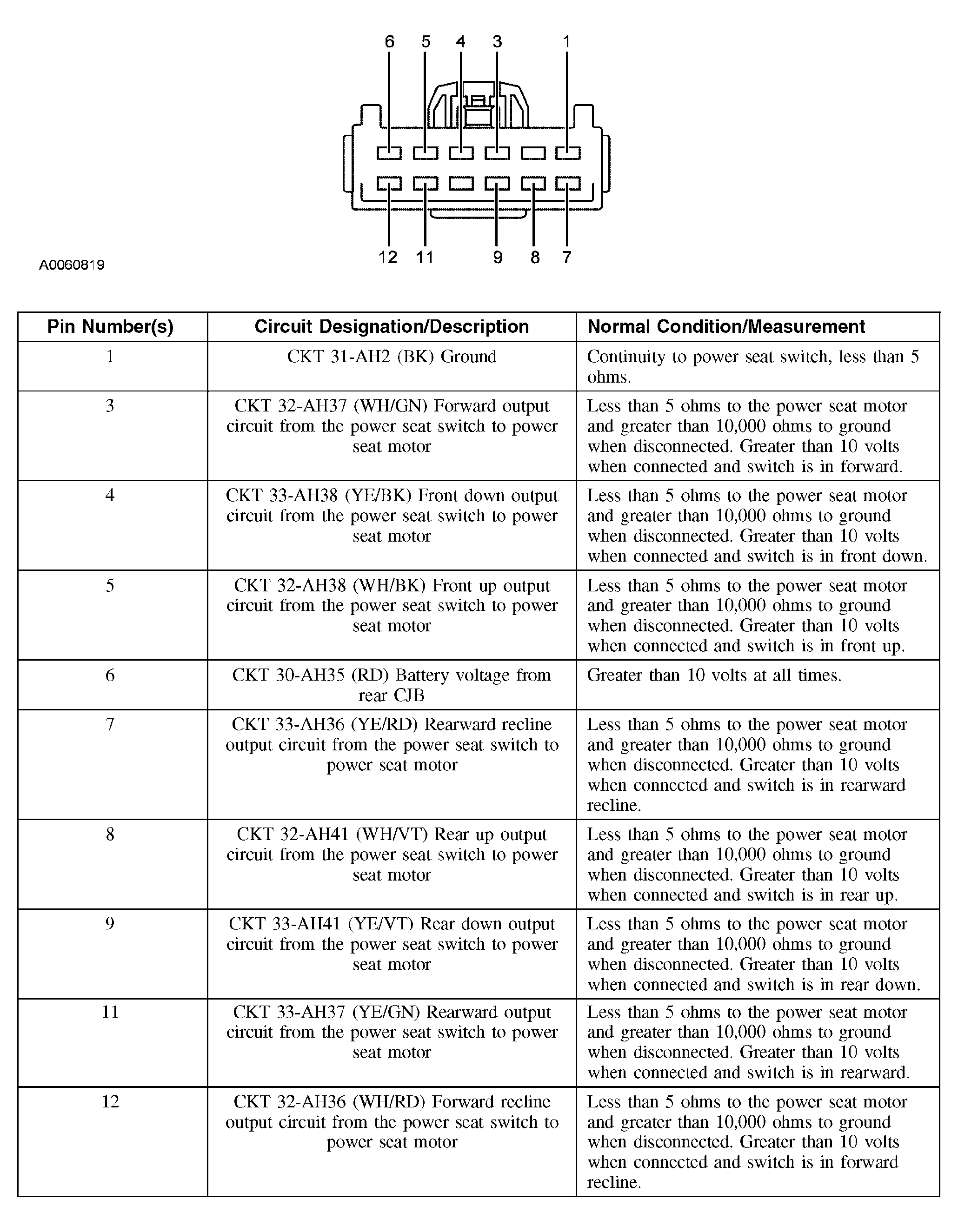

Fig 1: Identifying Driver Power Seat Control Switch C360 Connector Pins
G03999337Courtesy of FORD MOTOR CO.
