Passenger Climate Controlled Seat Module C3036a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

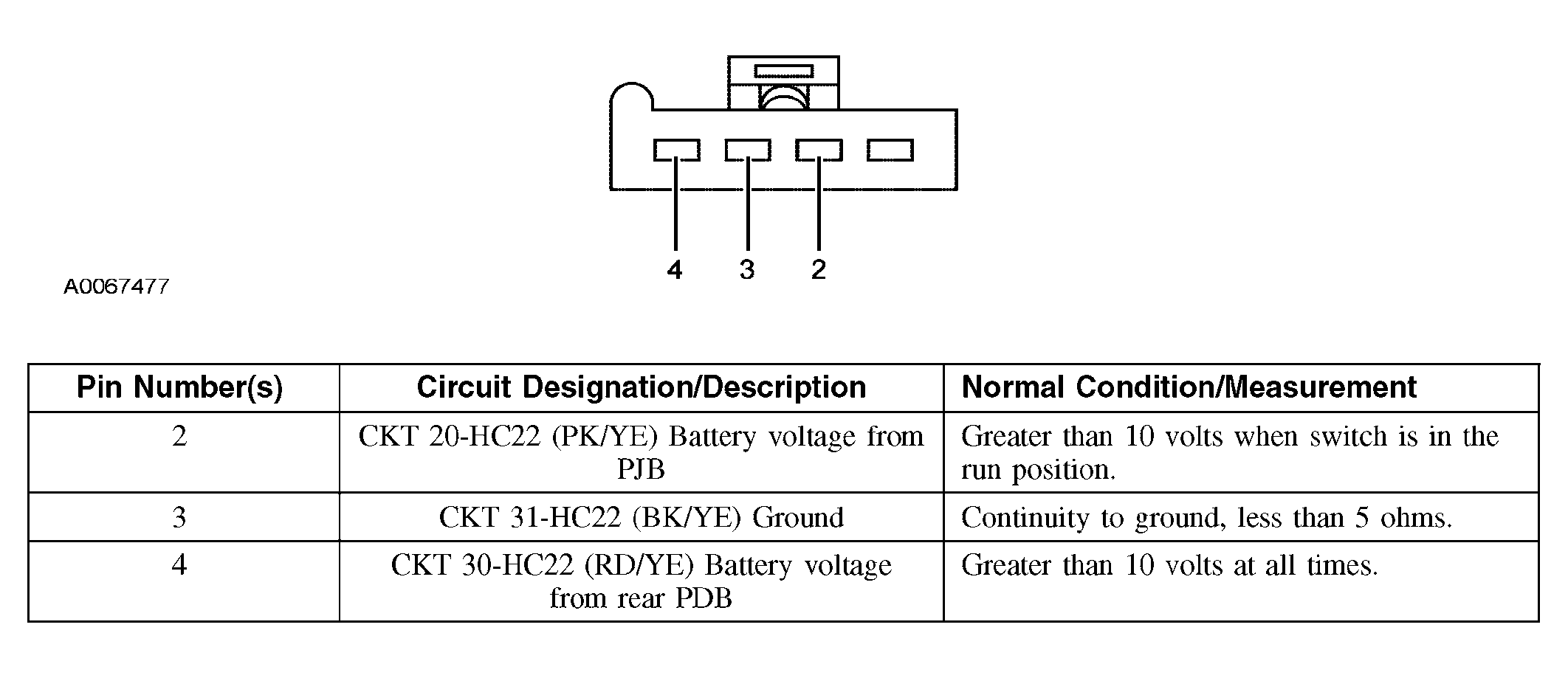

Fig 1: Identifying Passenger Climate Controlled Seat Module C3036a Connector Pins
G03999365Courtesy of FORD MOTOR CO.
