Removal and Installation
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING:
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
NOTE:
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
Driver seat cushion shown, passenger seat cushion similar.
- Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures .
- Carefully remove the seat control switch knobs.
- Remove the front and rear side shield screws.
- Detach and remove the seat control switch bezel.
- If equipped, disconnect the power lumbar switch.

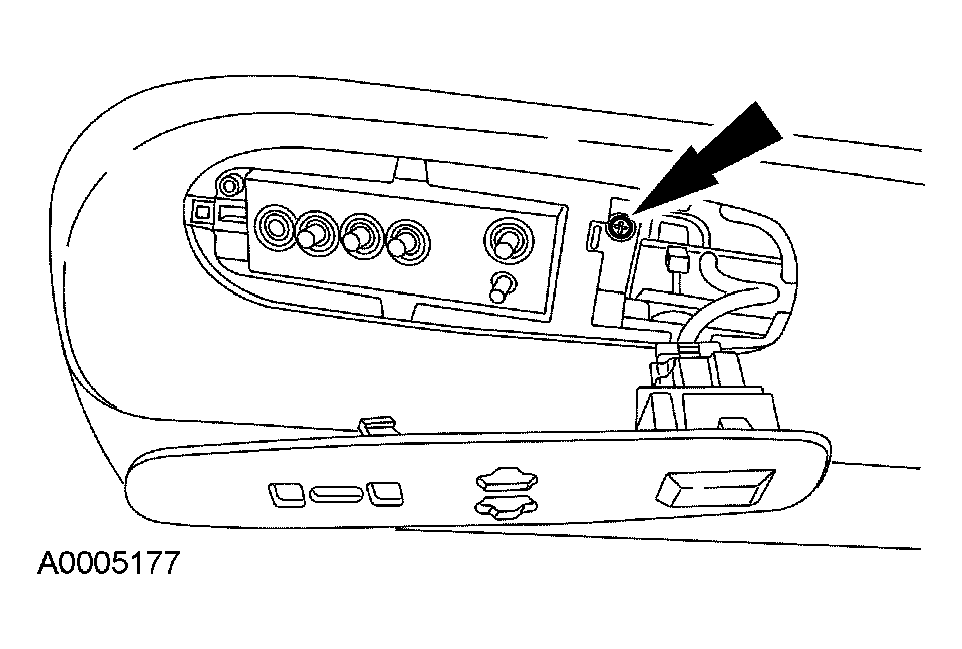

- Remove the screw from behind the seat control switch bezel.
- Disconnect the seat control switch electrical connector and remove the side shield.
- Remove the 3 screws and the seat control switch.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures .
