Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the anti-lock brake system (ABS) module electrical connector.
Disconnect the hydraulic control unit (HCU) pump motor electrical connector.

NOTE: Care must be taken when removing the module from the hydraulic control unit (HCU).

Remove the ABS module.
- Remove the screws in the sequence shown.
- To install, tighten to 3 Nm (27 lb-in).

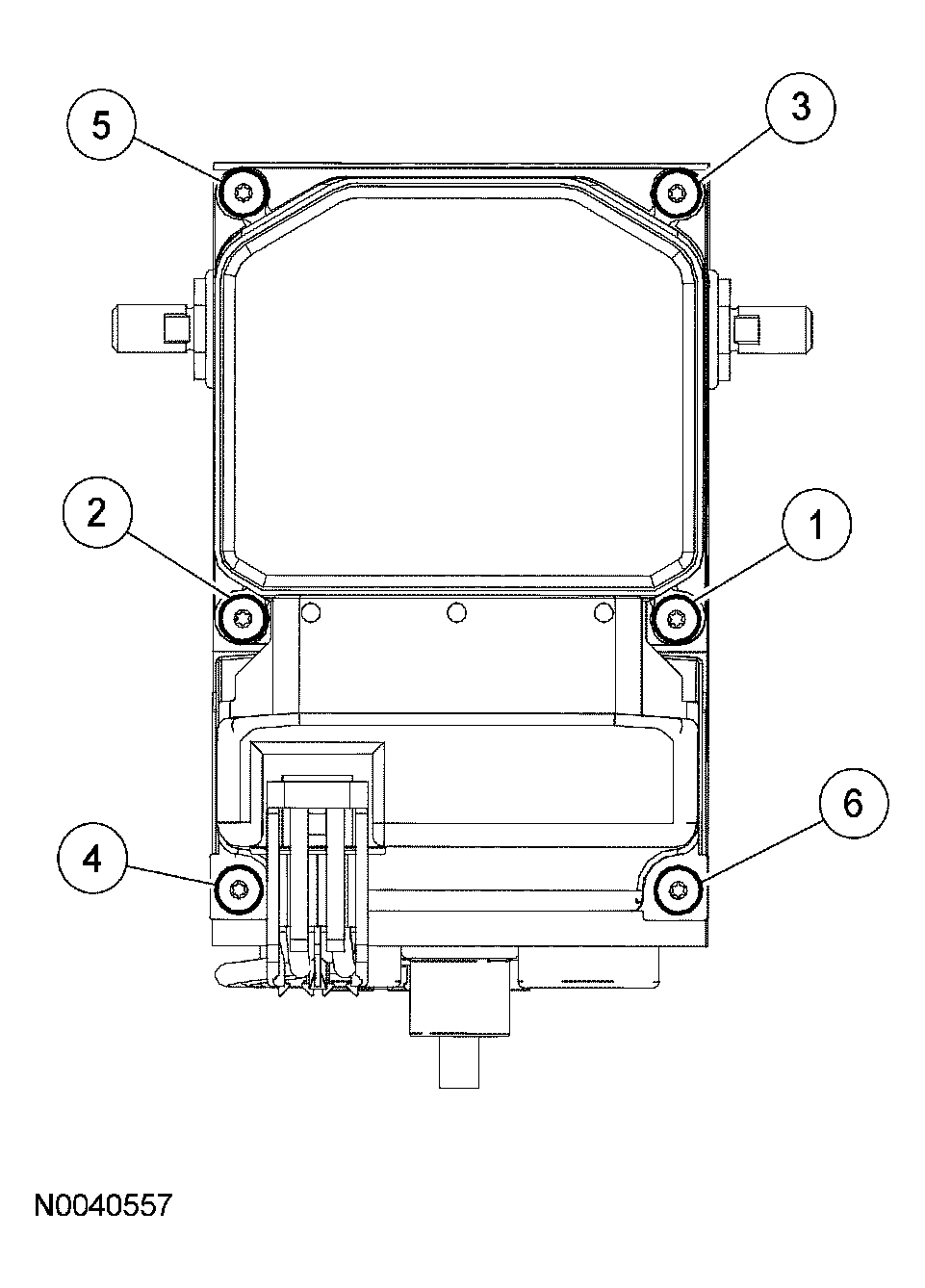

  Fig 1: Identifying Removing Sequence Of Screws
  Courtesy of FORD MOTOR CO.

NOTE: Make sure that the ABS module-to-HCU gasket surfaces are clean and that the gasket is correctly installed.

To install, reverse the removal procedure.
