Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

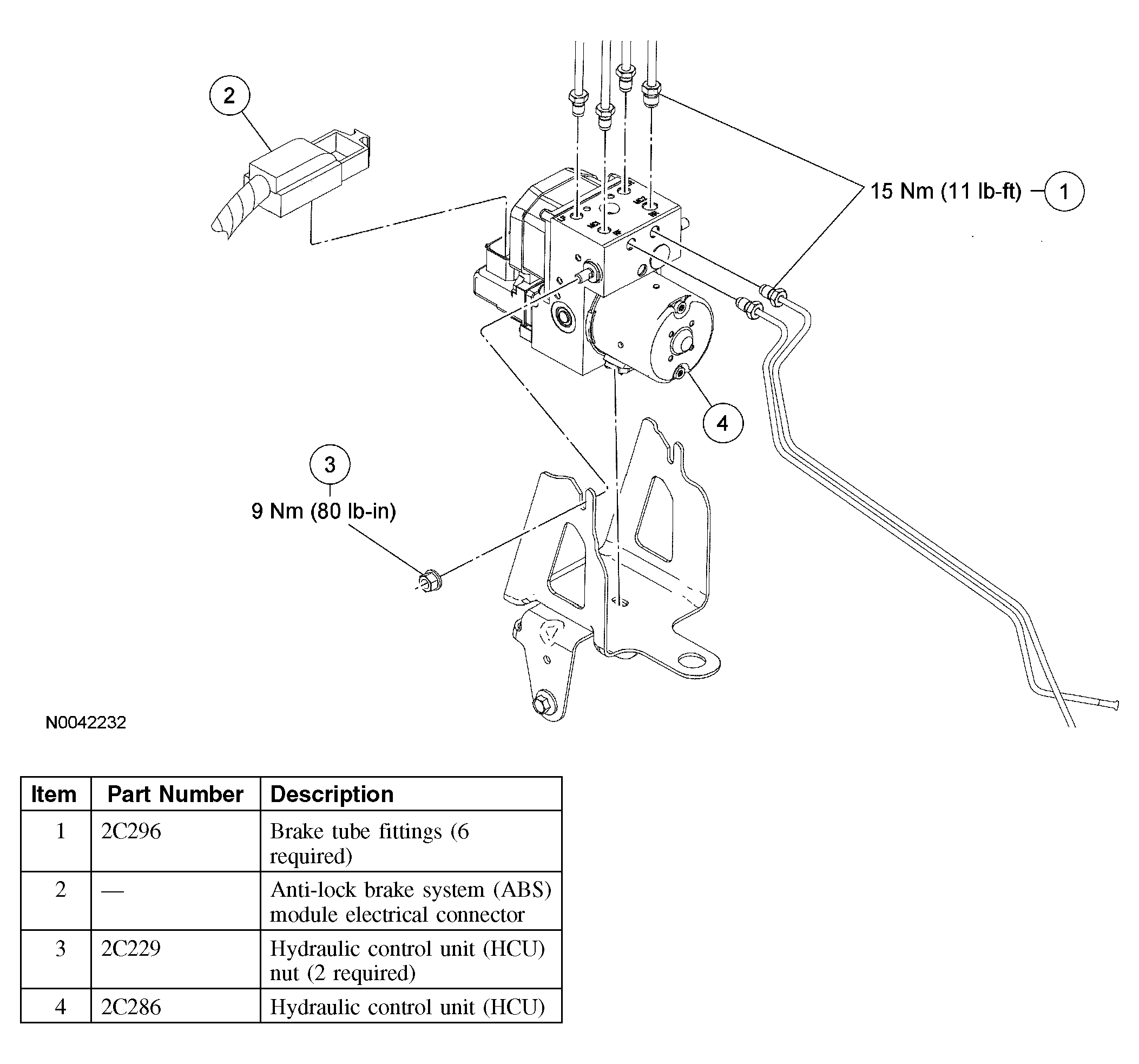

Fig 1: Removing/Installing Hydraulic Control Unit (HCU)
G04583218Courtesy of FORD MOTOR CO.
