Steering Gear: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX	MERCON®

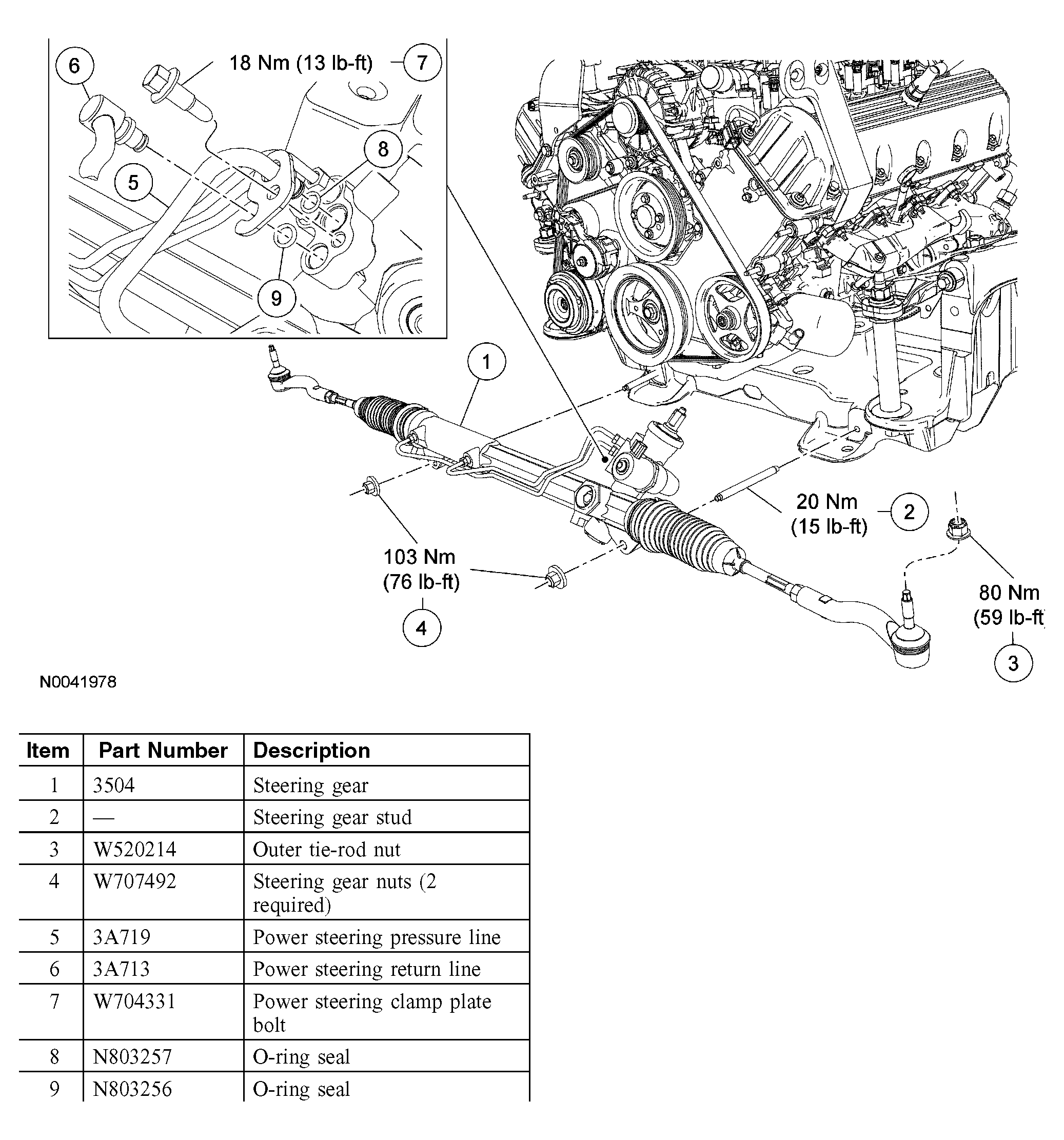

Fig 1: Removing/Installing Steering Gear

Courtesy of FORD MOTOR CO.
