Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not remove the camshaft before removing the roller followers.
    CAUTION: Place cylinder head on a cardboard or wood surface to prevent damage to the joint face.
    Fig 1: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.
  1. Install the special tool between the valve spring coils to prevent valve stem seal damage.
  2. NOTE: The roller followers must be reinstalled in their original locations. Record roller follower locations.

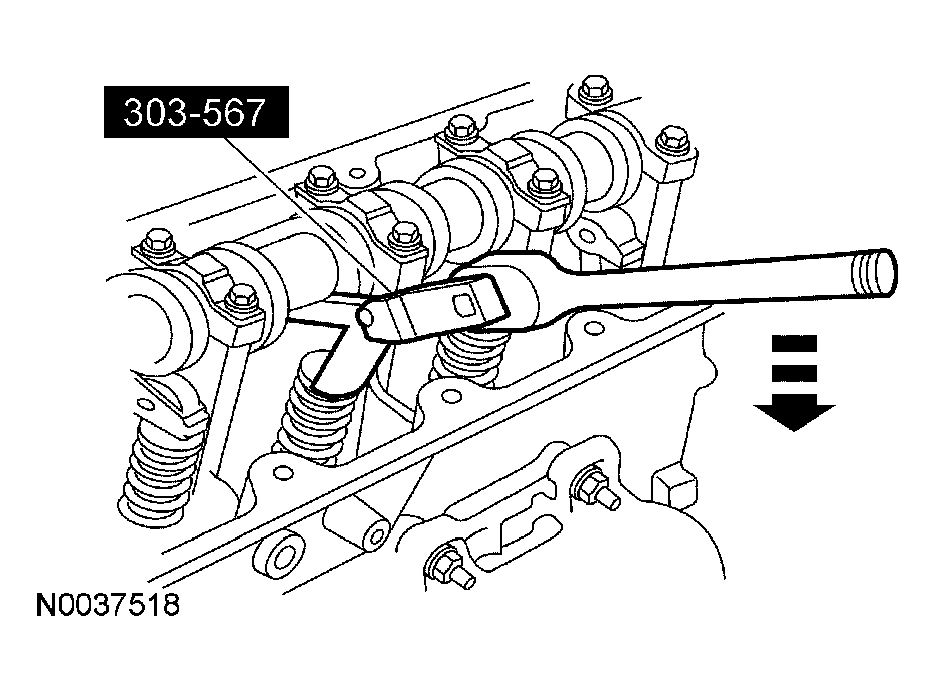

    Fig 2: Compressing Valve Springs
    G04583780Courtesy of FORD MOTOR CO.
  3. Use the special tool to compress the valve springs, and remove the roller followers.
  4. NOTE: The hydraulic lash adjusters must be installed in their original locations. Record hydraulic lash adjuster locations.
    Fig 3: Identifying Hydraulic Lash Adjusters
    G03885650Courtesy of FORD MOTOR CO.
  5. Remove the hydraulic lash adjusters.
  6. Use the special tool to compress the valve springs.

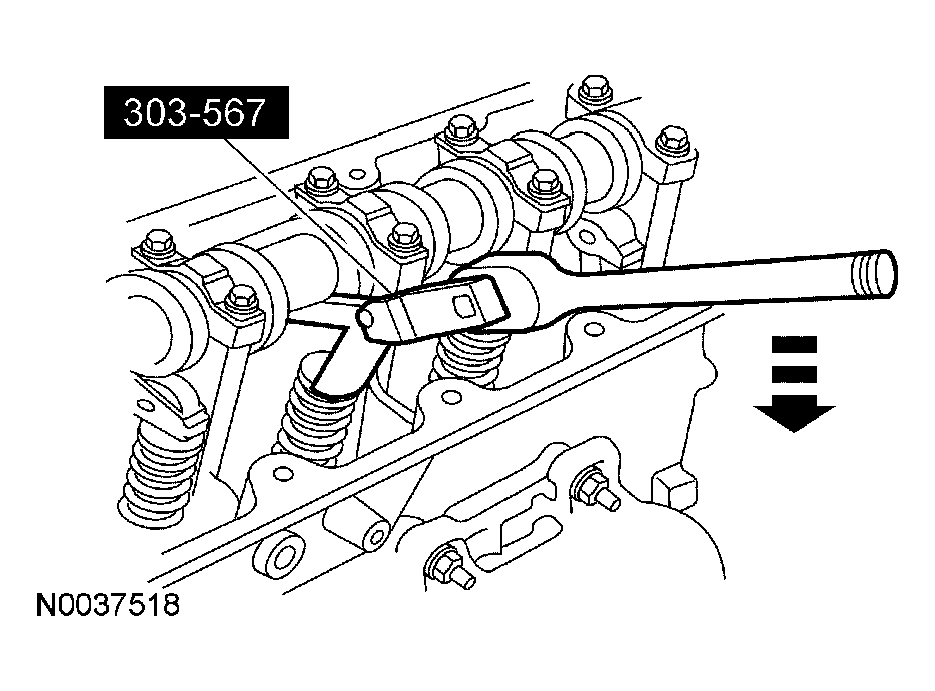

    Fig 4: Compressing Valve Springs
    G04583782Courtesy of FORD MOTOR CO.
  7. CAUTION: Keep valves and valve spring retainer keys in order so they can be installed in the same positions.

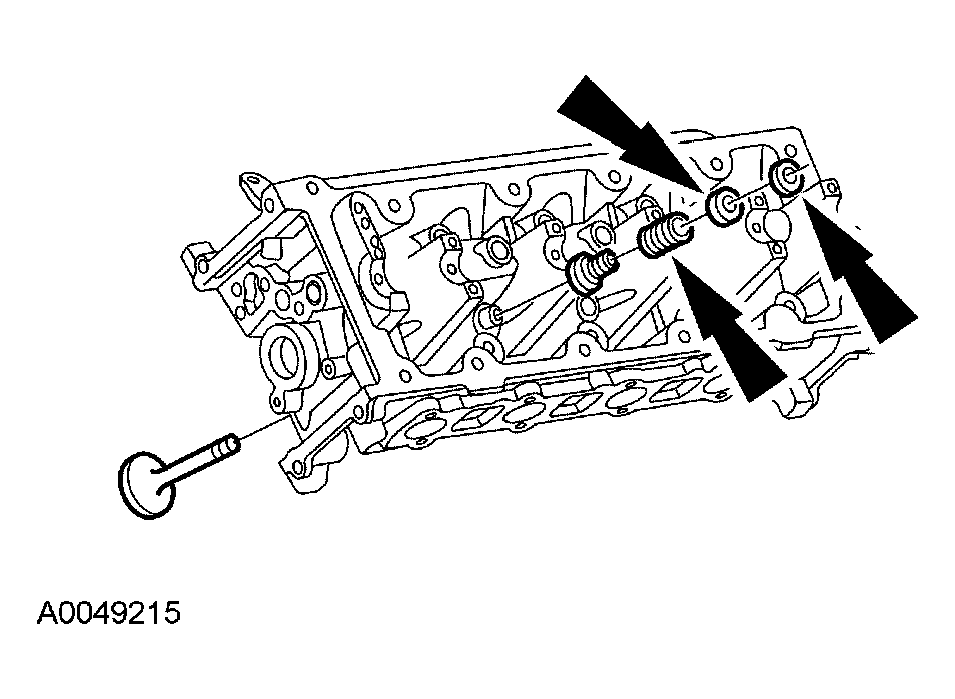

    Fig 5: Removing Valve Spring Retainer Keys
    G04583783Courtesy of FORD MOTOR CO.
  8. Remove the valve spring retainer keys, the valve spring retainers, the valve springs and the valves.
  9. Remove the valve stem seals.

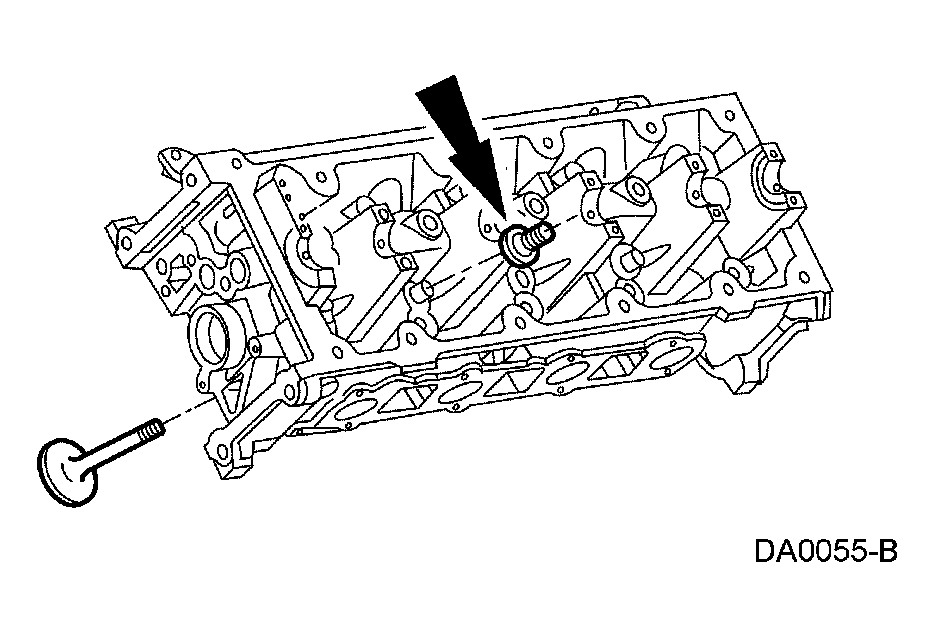

    Fig 6: Removing Valve Stem Seals
    G04583784Courtesy of FORD MOTOR CO.
  10. NOTE: The camshaft bearing caps must be installed in their original location. Record camshaft bearing cap location.

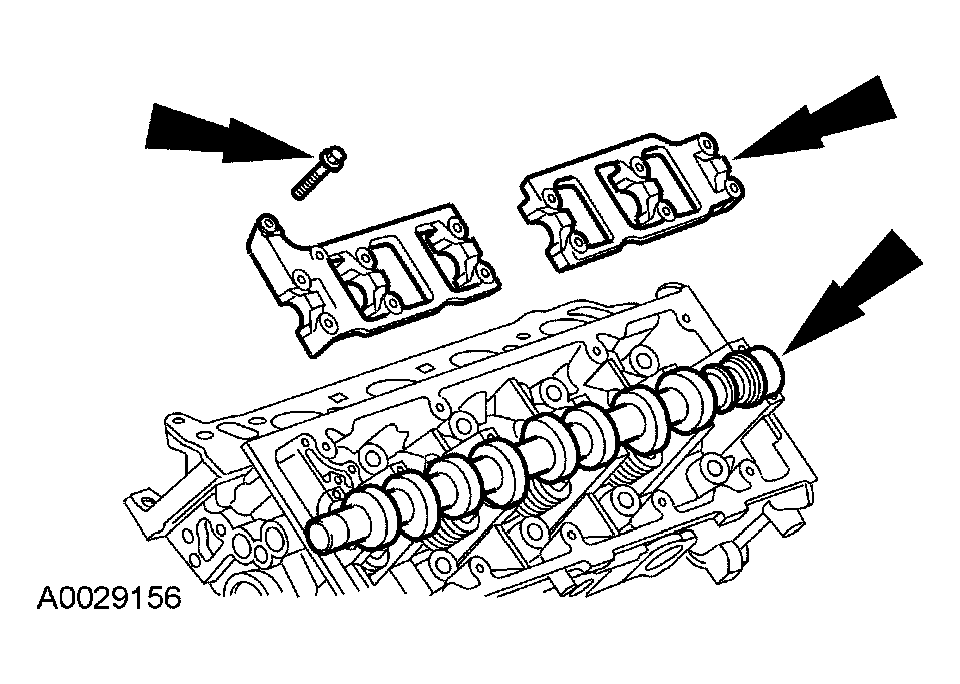

    Fig 7: Removing Bearing Caps And Camshaft
    G04583785Courtesy of FORD MOTOR CO.
  11. Remove the bolts, the bearing caps and the camshaft.
