Camshaft Roller Follower: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Use the special tool to compress the valve spring and install the camshaft roller followers.

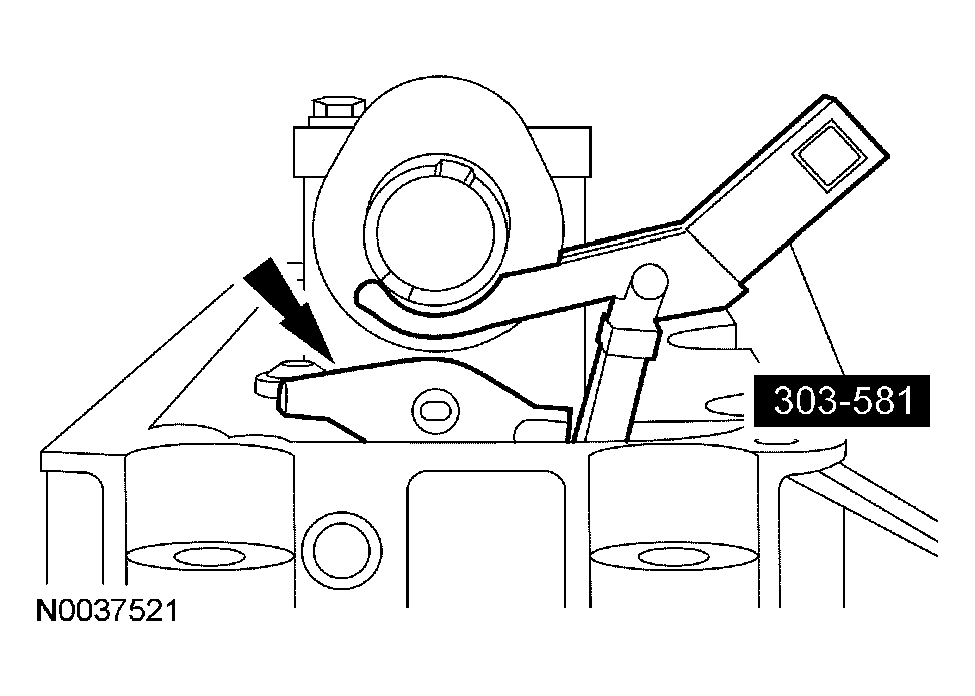

Fig 1: Installing Camshaft Roller
Courtesy of FORD MOTOR CO.
Remove the special tool from between the valve spring.

Fig 2: Installing Special Tool Between Valve Spring Coils
Courtesy of FORD MOTOR CO.
Install the valve covers. For additional information, refer to VALVE COVER - RH or VALVE COVER - LH .

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

If equipped with fire suppression system, repower the system.
