Exhaust Manifold - RH: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

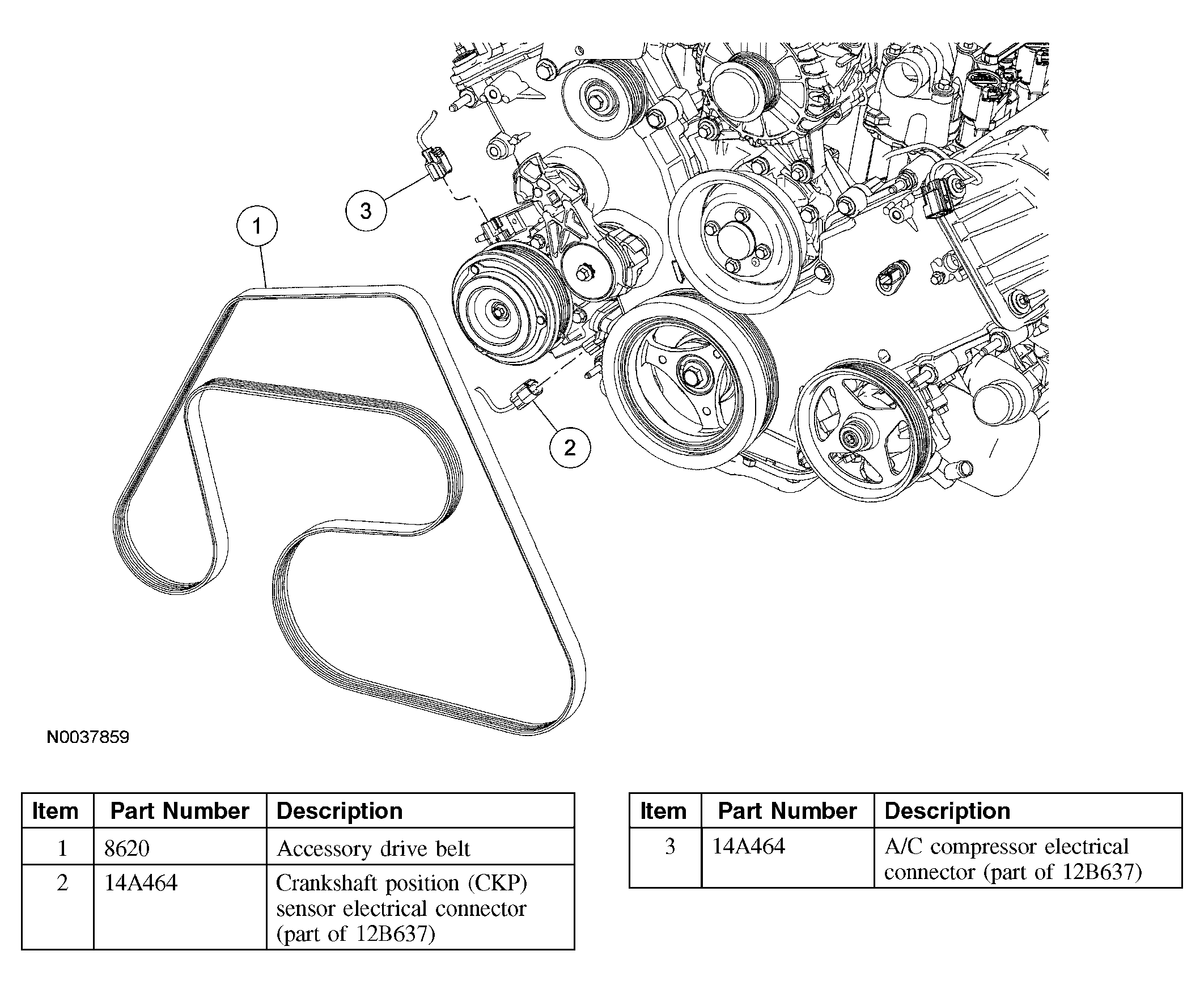

Fig 1: Identifying Exhaust Manifold Components - RH (1 Of 3)

Courtesy of FORD MOTOR CO.

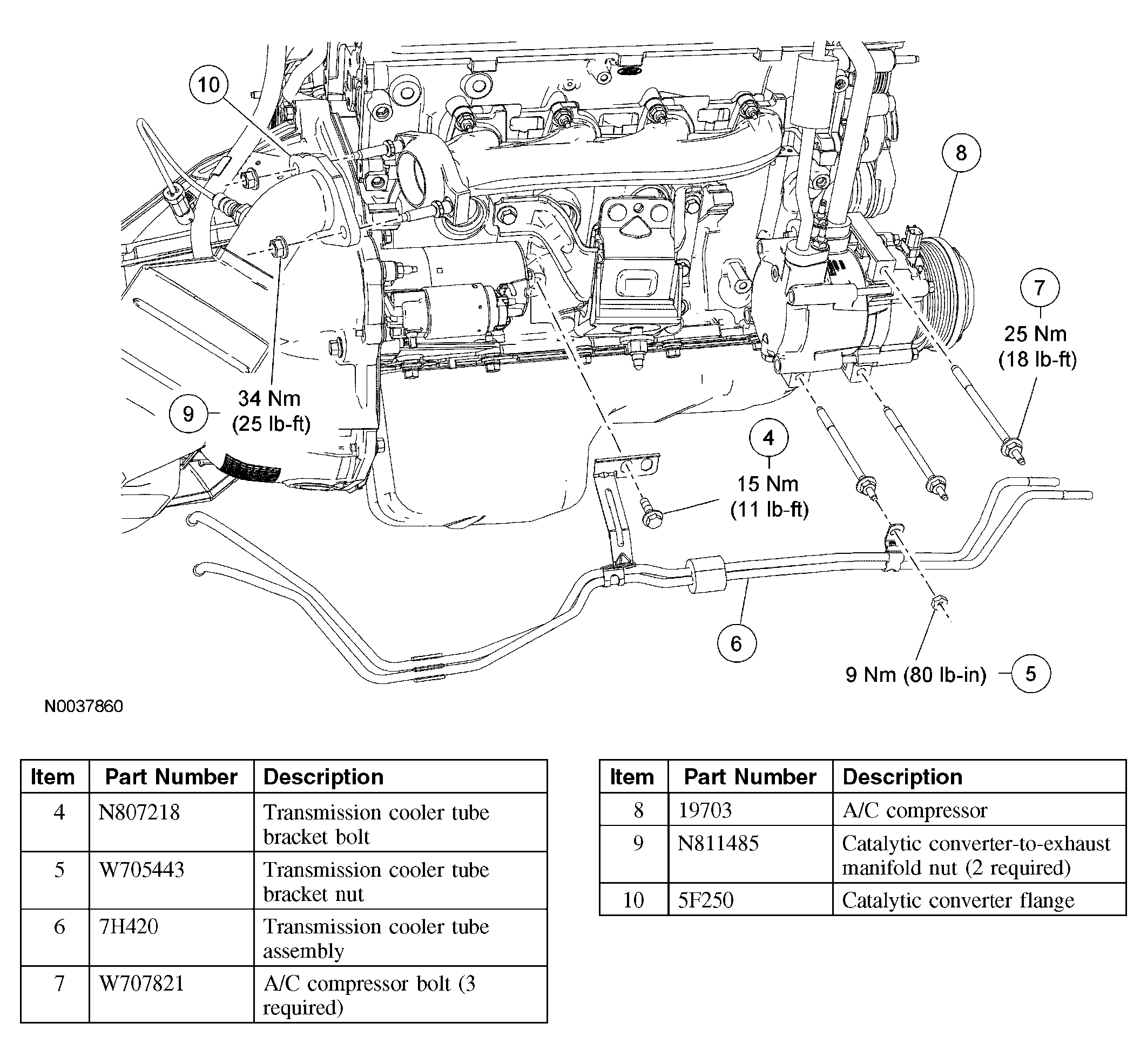

Fig 2: Identifying Exhaust Manifold Components - RH (2 Of 3)

Courtesy of FORD MOTOR CO.

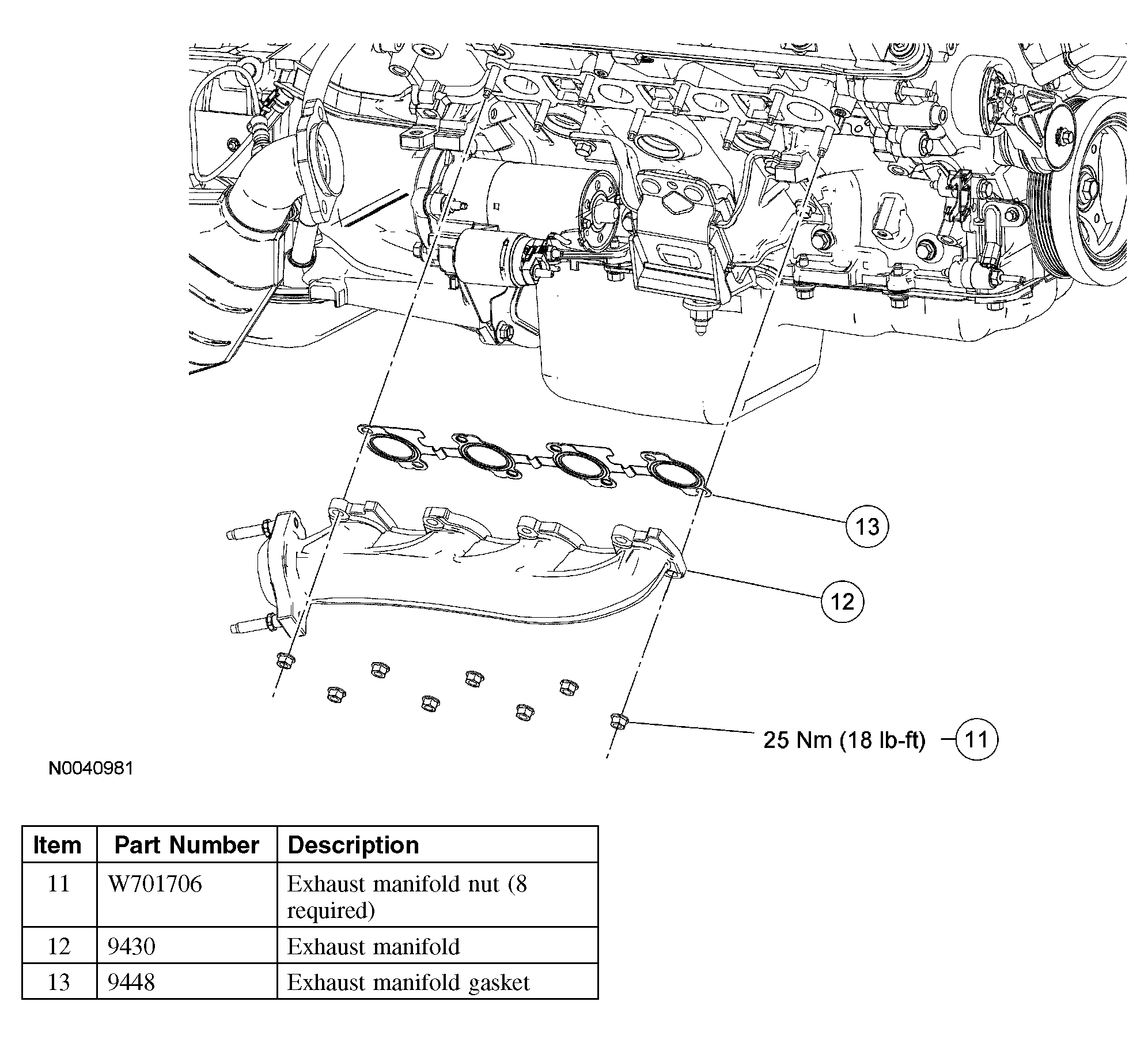

Fig 3: Identifying Exhaust Manifold Components - RH (3 Of 3)

Courtesy of FORD MOTOR CO.
