Oil Pan: Removal
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Remove the front crossmember. For additional information, refer to .

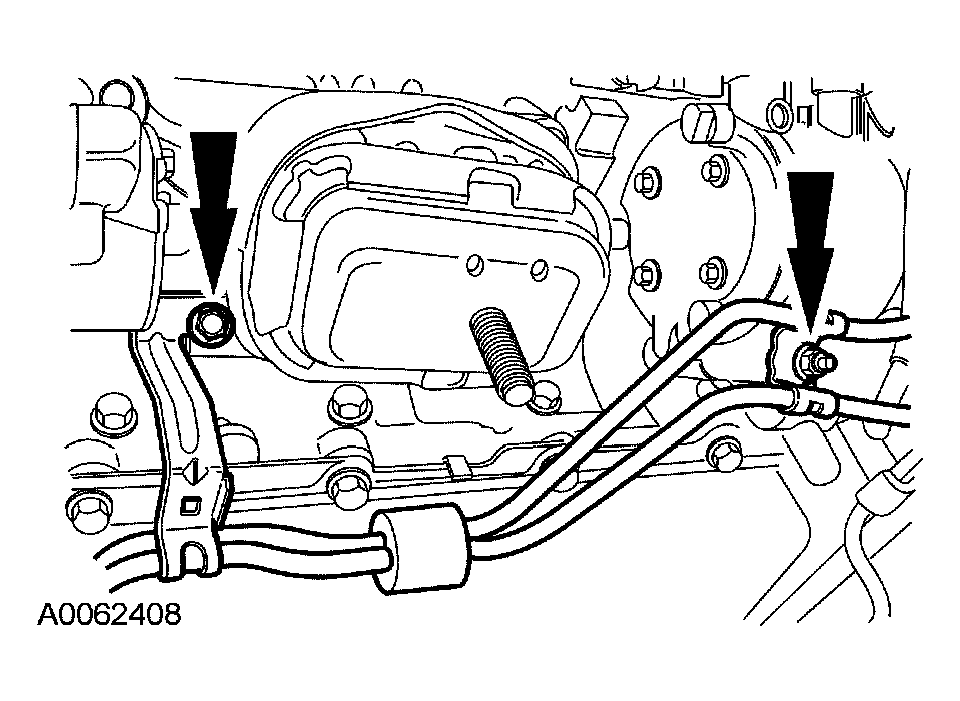

- Remove the bolt and the nut. Position the transmission cooler tubes aside.
- Drain the engine oil.
- Install the drain plug when finished.
- Tighten to 13 Nm (10 lb-ft).
- Detach the 2 pin-type wire harness retainers.

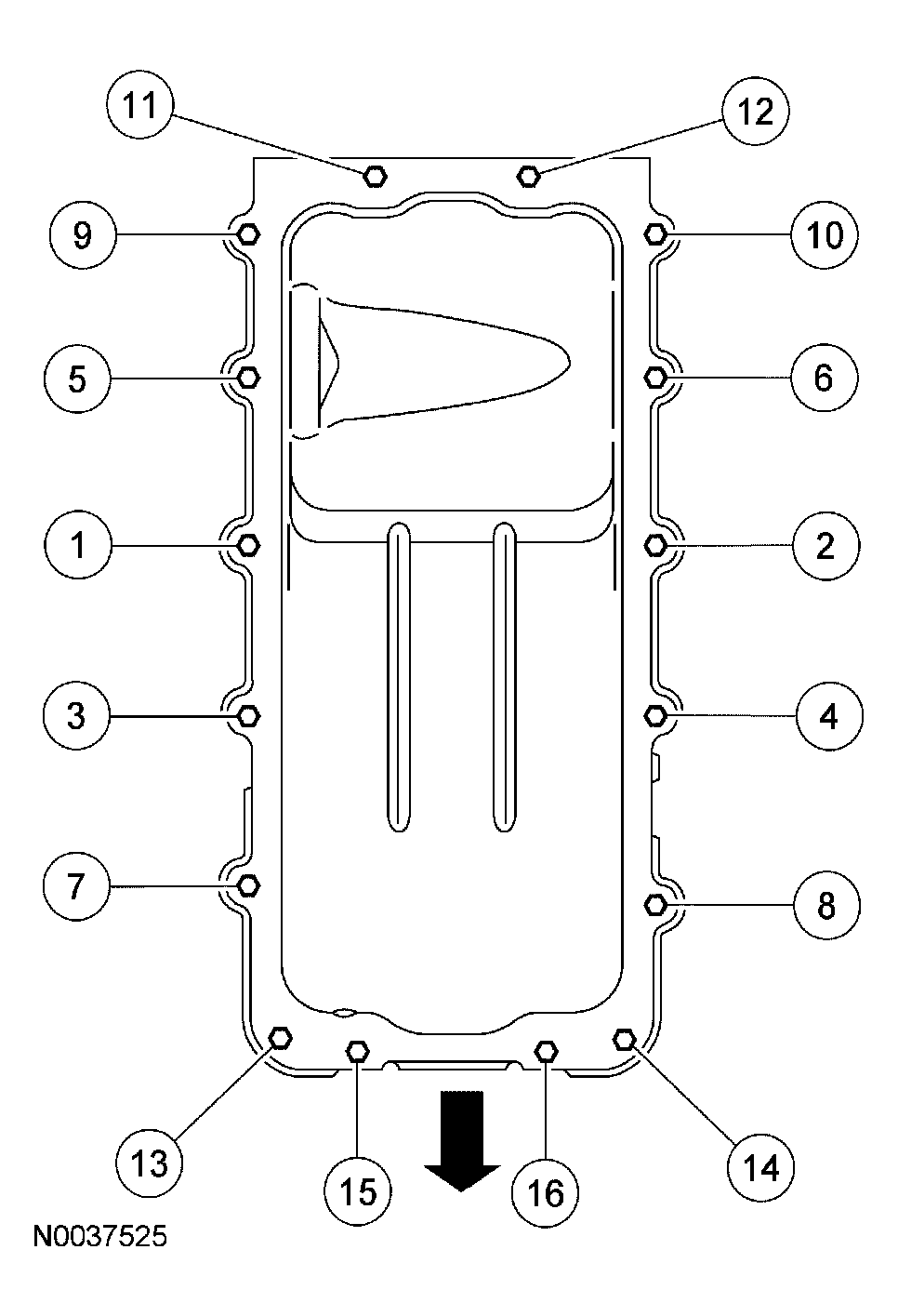

- Remove the oil pan bolts in the sequence shown.
- Remove the oil pan and the gasket.
WARNING:
If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM
.
