Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

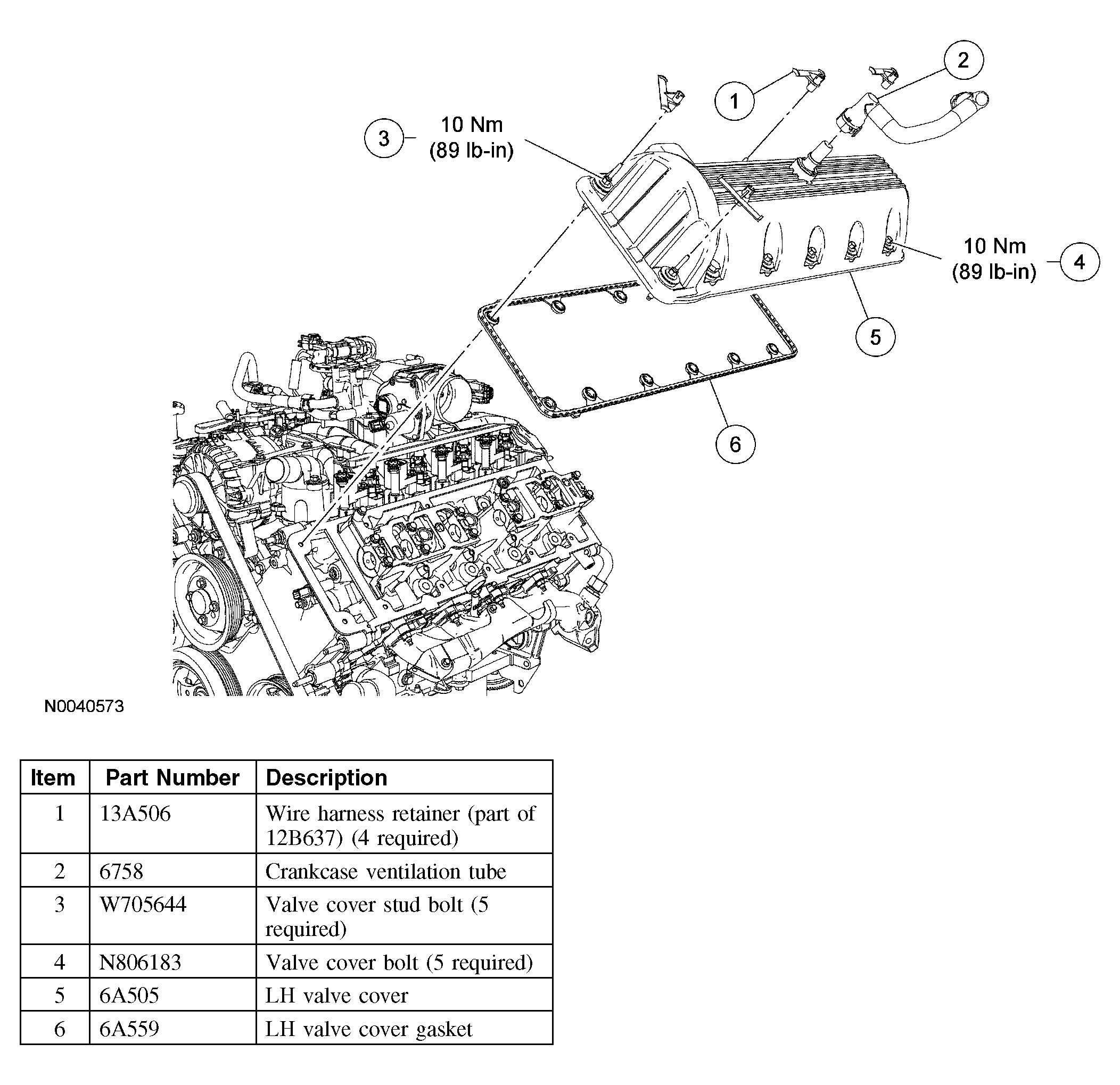

Fig 1: Identifying Valve Cover Components - LH

Courtesy of FORD MOTOR CO.
