Throttle Position (TP) Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

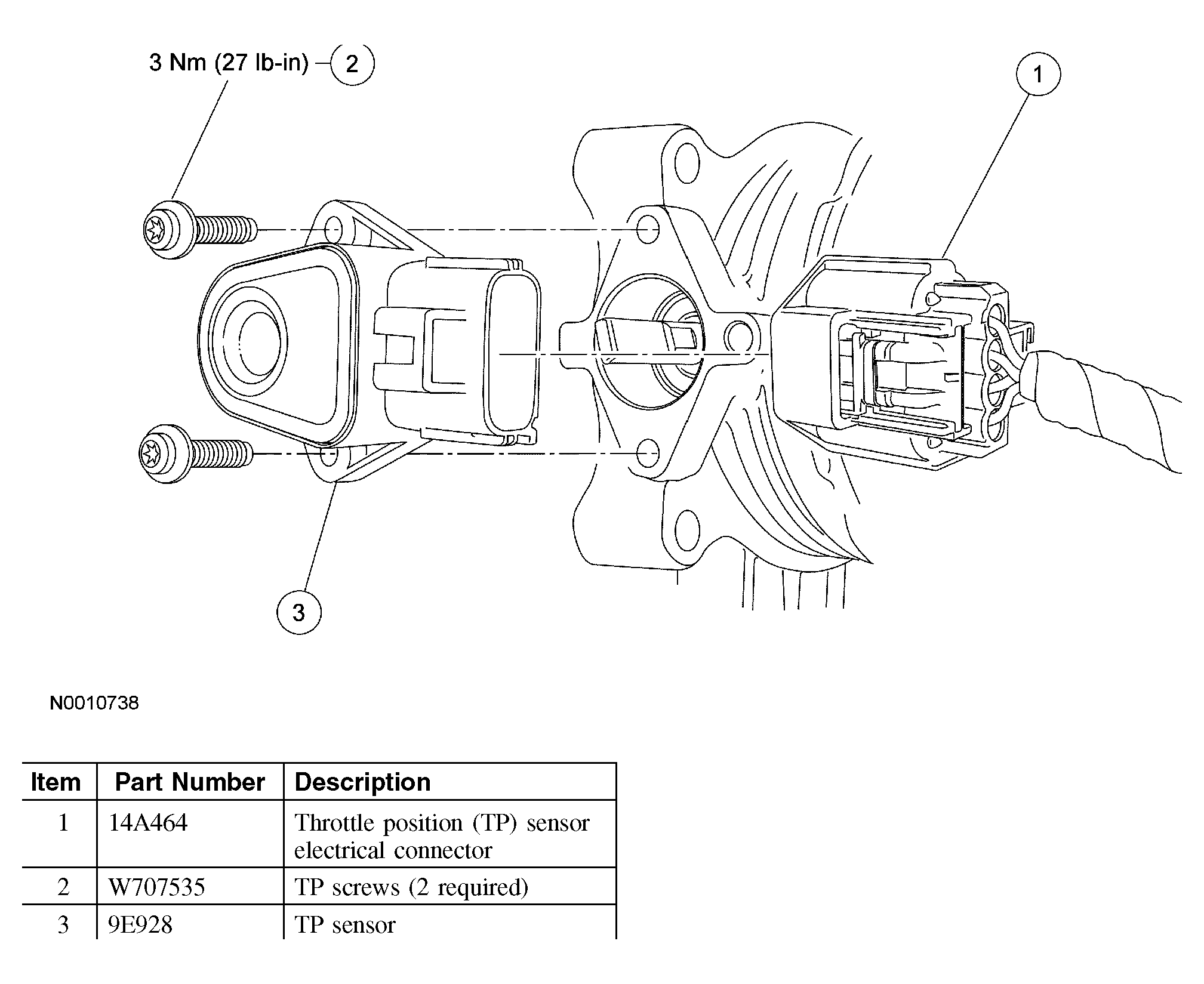

Fig 1: Removing/Installing Throttle Position (TP) Sensor
G04584160Courtesy of FORD MOTOR CO.
