Accelerator Pedal and Bracket: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Install the accelerator pedal and bracket assembly.
  2. Install the 3 accelerator pedal and bracket retainer nuts. Tighten to 9 Nm (80 lb-in).

    3. Vehicles with adjustable accelerator pedal and bracket

  3. Connect the accelerator pedal motor drive cable connector.

    4. All vehicles

    NOTE: On vehicles with a fixed pedal and bracket assemblies, the service unit may differ from the original unit. The non-working accelerator pedal motor electrical connector may be plugged into either of these locations shown depending on the length of the harness.

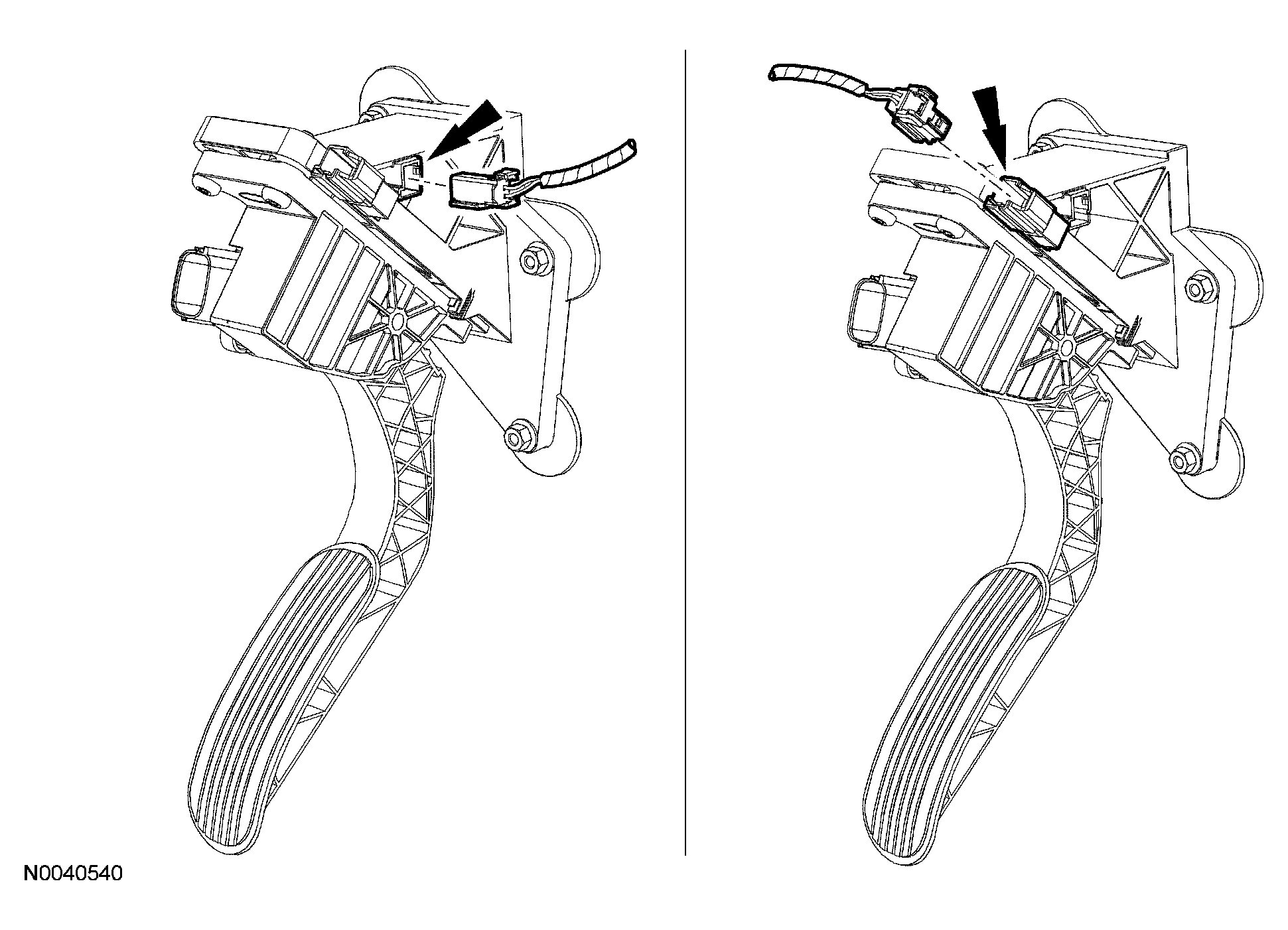

    Fig 1: Connecting Accelerator Pedal Motor Electrical Connector
    G04584957Courtesy of FORD MOTOR CO.
  4. Connect the accelerator pedal motor electrical connector.
  5. Connect the accelerator pedal sensor electrical connector.
  6. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    7. Vehicles with adjustable accelerator pedal and bracket

  7. Index the adjustable accelerator pedal and bracket assemblies. For additional information, refer to HYDRAULIC BRAKE ACTUATION .
