Removal and Installation
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

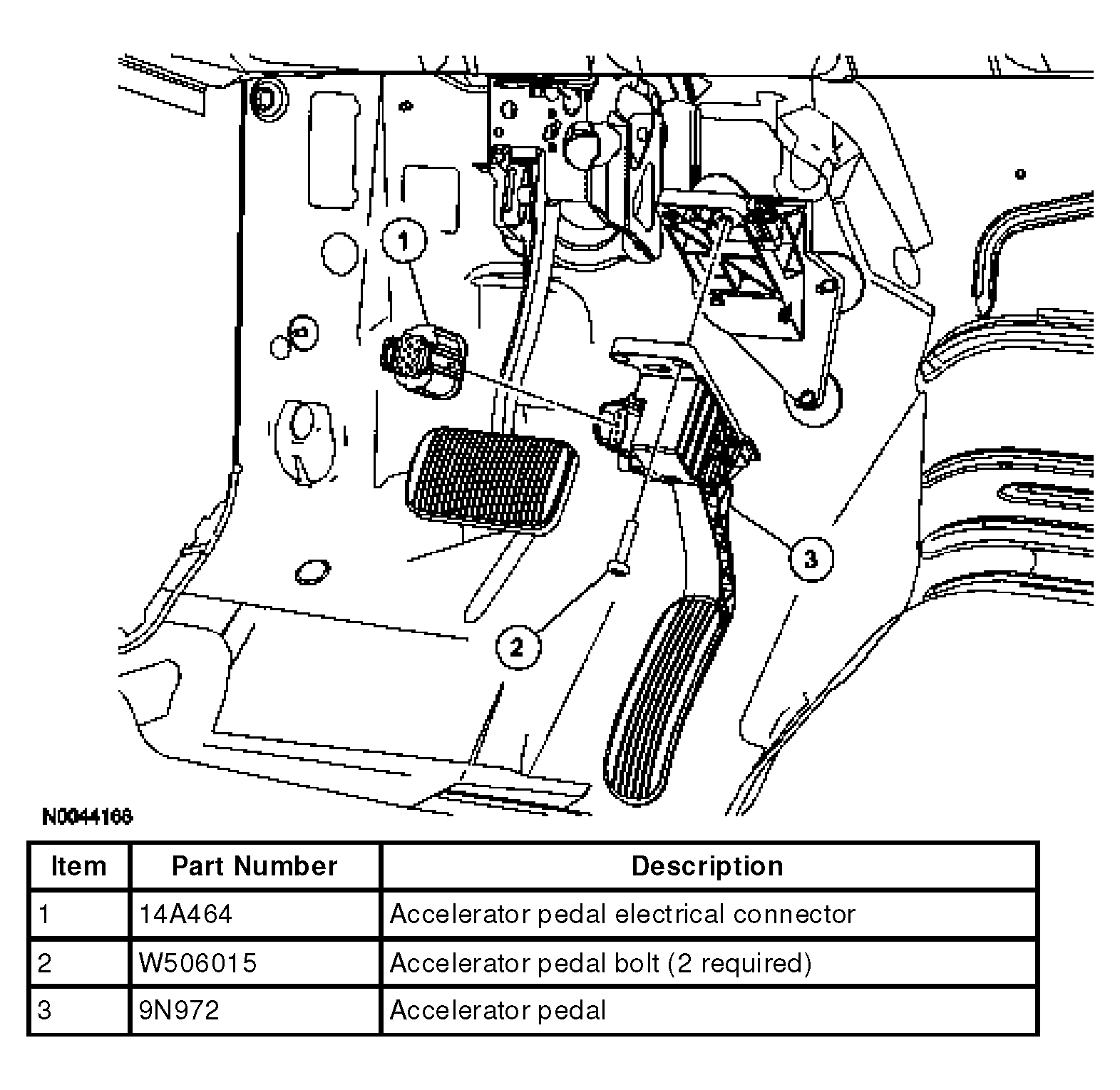

- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Disconnect the accelerator pedal electrical connector.
- Remove the 2 bolts and the accelerator pedal assembly.
- To install, tighten to 9 Nm (80 lb-in).
- To install, reverse the removal procedure.
