Compressor to Condenser Discharge Line: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D WSH-M1C231-B

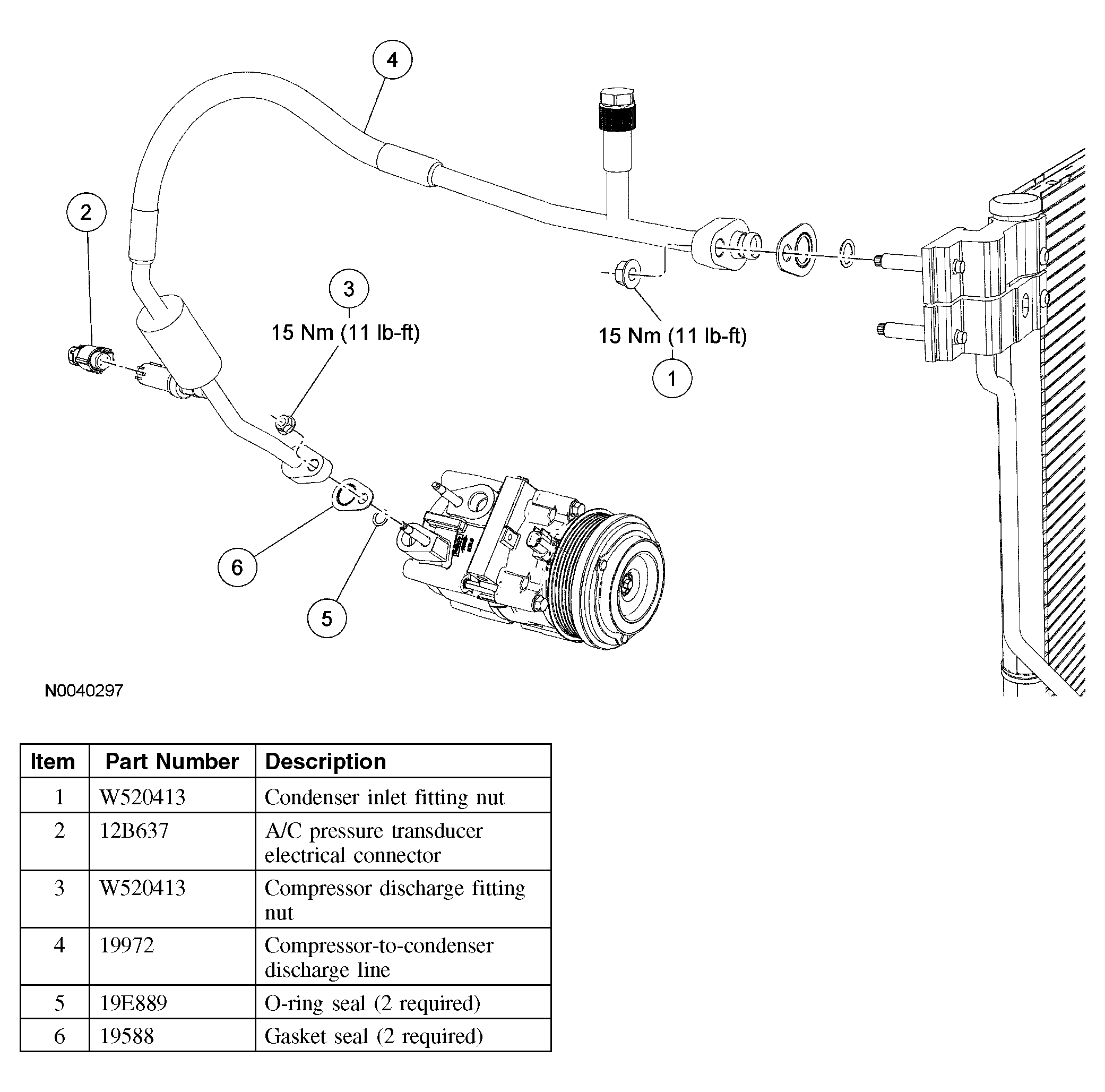

Fig 1: Removing Compressor To Condenser Discharge Line
G04585241Courtesy of FORD MOTOR CO.
