Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

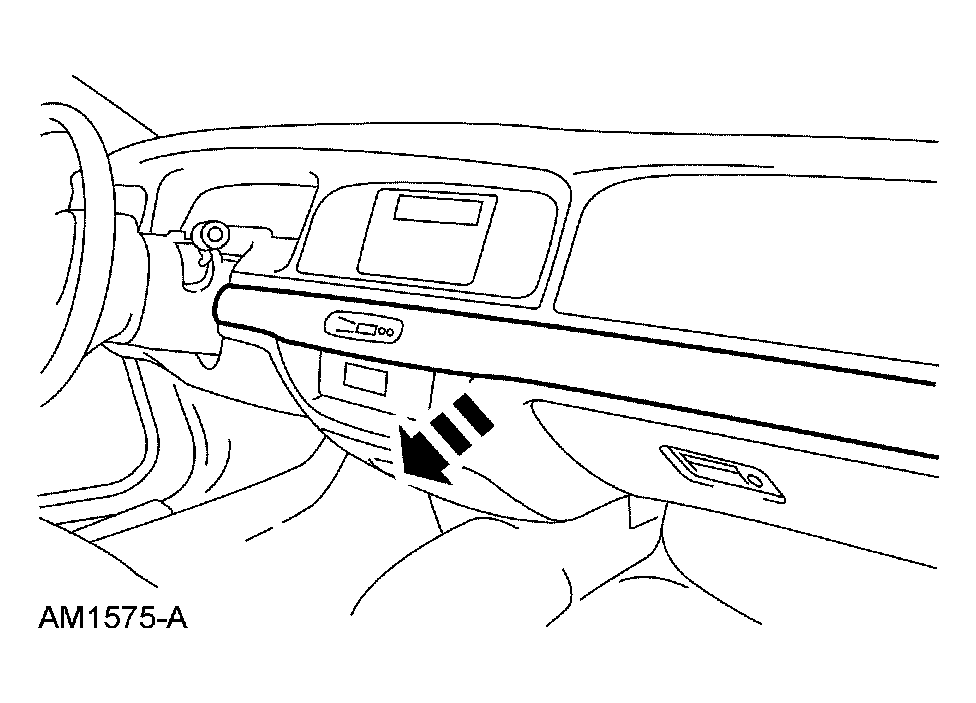

Detach the finish panel.

Fig 1: Removing Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

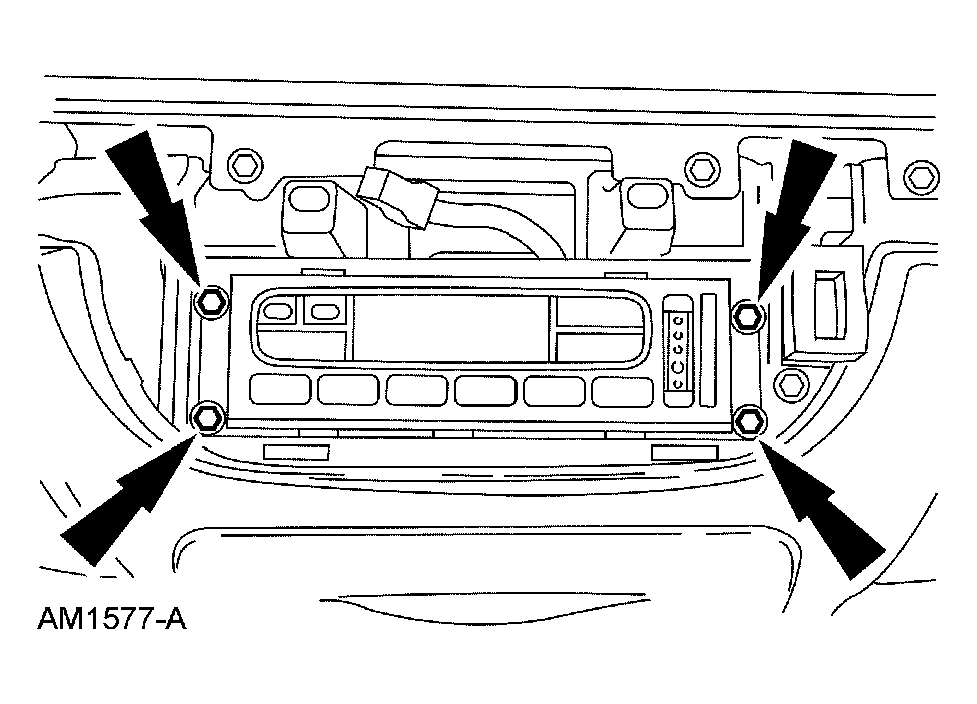

Remove the 4 climate control assembly screws and pull the control assembly away from the instrument panel.

Fig 3: Removing Climate Control Assembly Screws
Courtesy of FORD MOTOR CO.

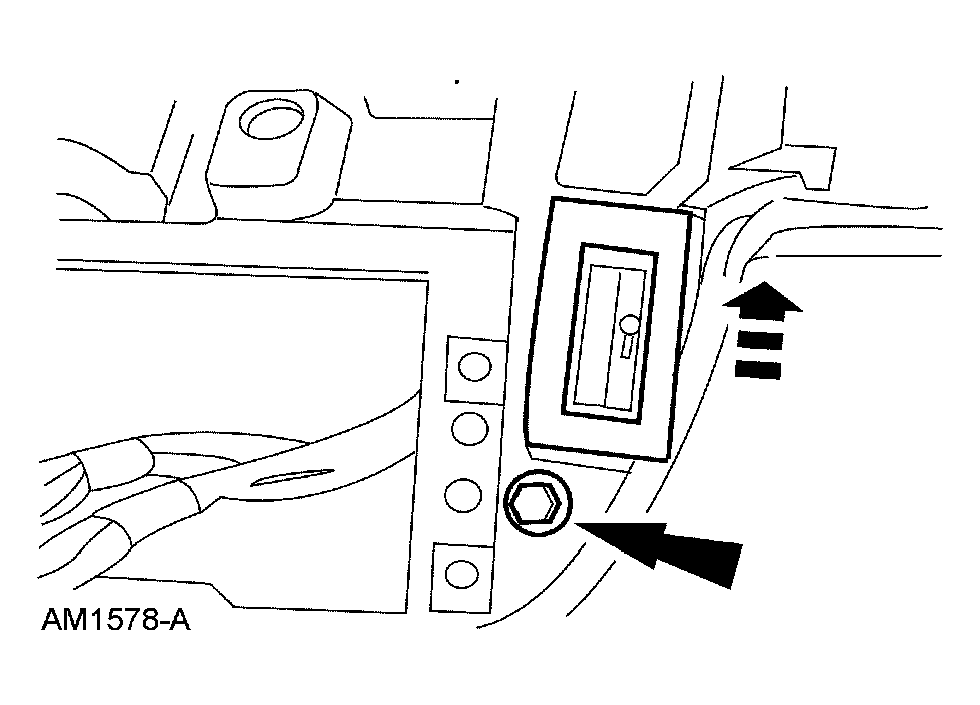

Remove the screw and position the in-vehicle temperature sensor to access the electrical connector.

Fig 4: Removing In-Vehicle Temperature Sensor
Courtesy of FORD MOTOR CO.

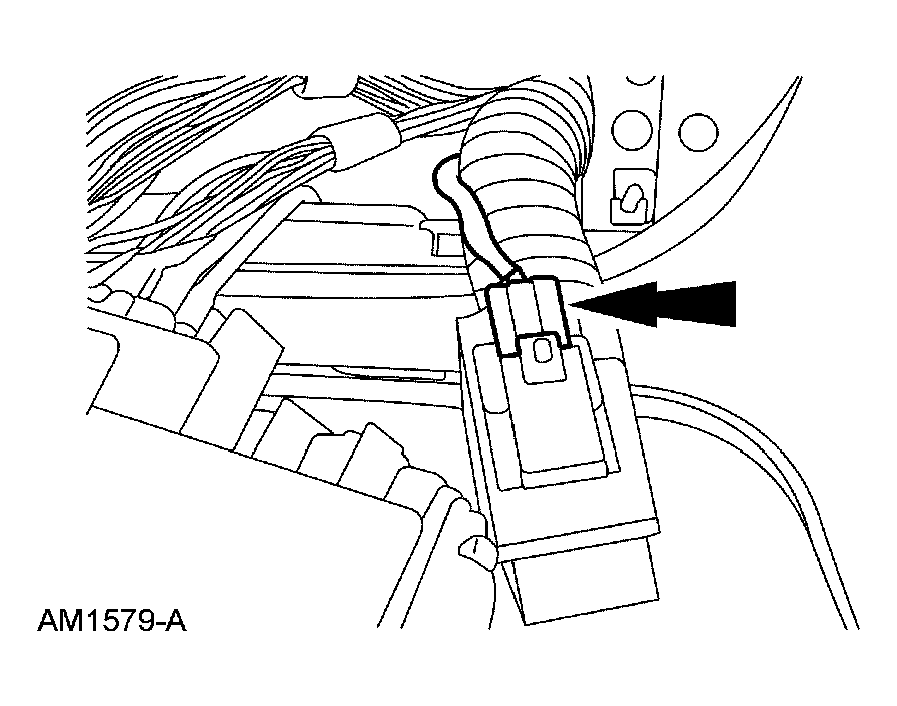

Disconnect the connector.

Fig 5: Disconnecting Connector
Courtesy of FORD MOTOR CO.

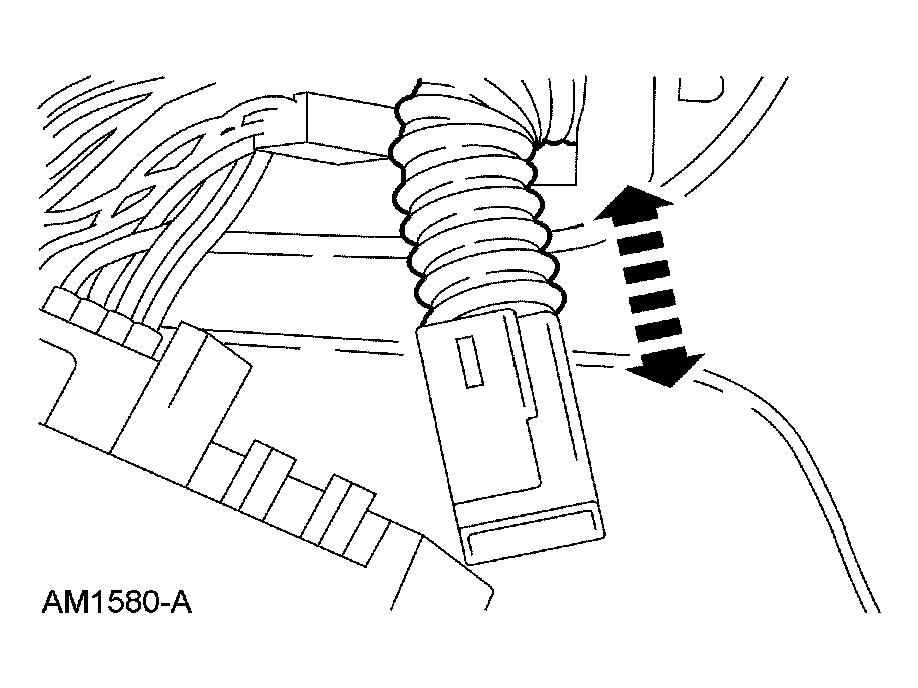

Disconnect the aspirator hose and remove the in-vehicle temperature sensor.

Fig 6: Disconnecting Aspirator Hose
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
