Starter Motor - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

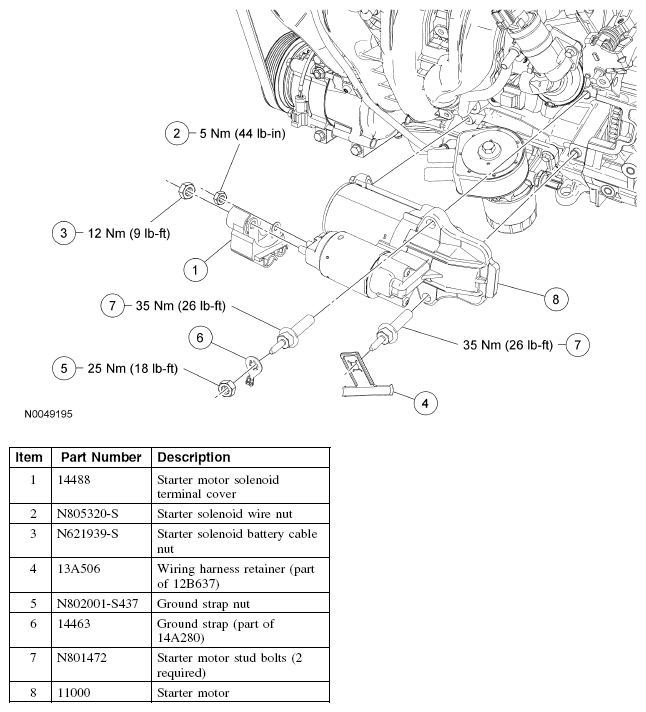

Fig 1: Starter Motor -- 2.3L With Torque Specifications
G04619652Courtesy of FORD MOTOR CO.
