WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

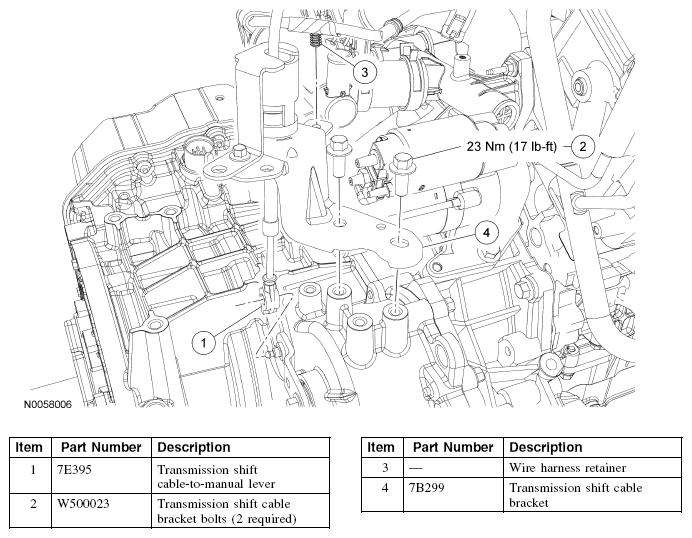

Fig 1: Starter Motor -- 3.0L (1 Of 2) With Torque Specifications
Courtesy of FORD MOTOR CO.

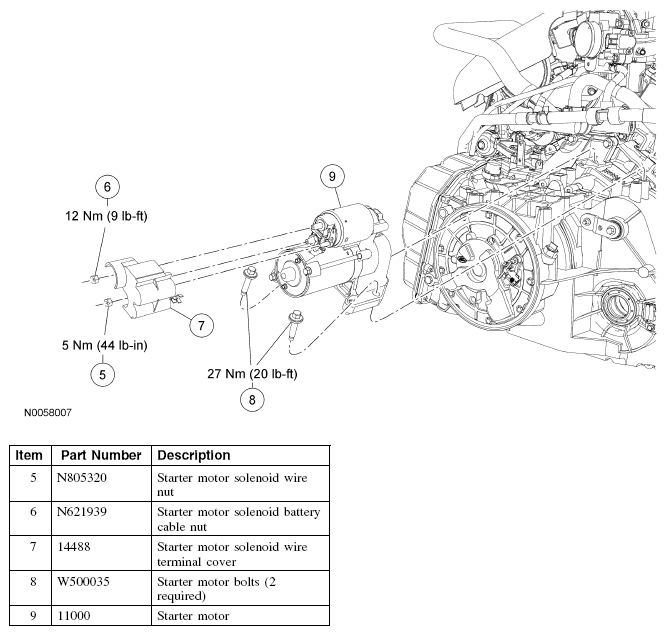

Fig 2: Starter Motor -- 3.0L (2 Of 2) With Torque Specifications
