Suction Accumulator: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D WSH-M1C231-B

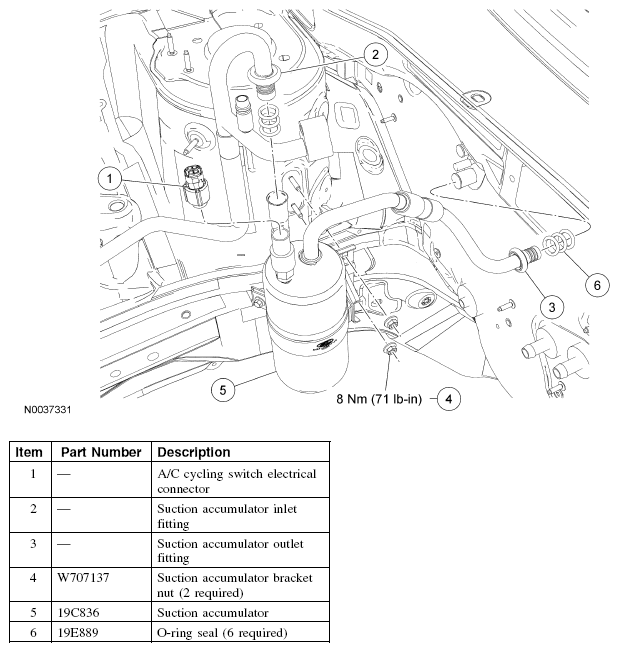

Fig 1: Suction Accumulator Replacement Components With Torque Specifications
G04621670Courtesy of FORD MOTOR CO.
