Power Steering Pump - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G04617782
Teflon® Seal Replacer Set
211-D027 (D90P-3517-A) or equivalent
MATERIAL SPECIFICATIONS

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid
XT-2-QDX (US); XT-2-LM12 (Canada)
MERCON®

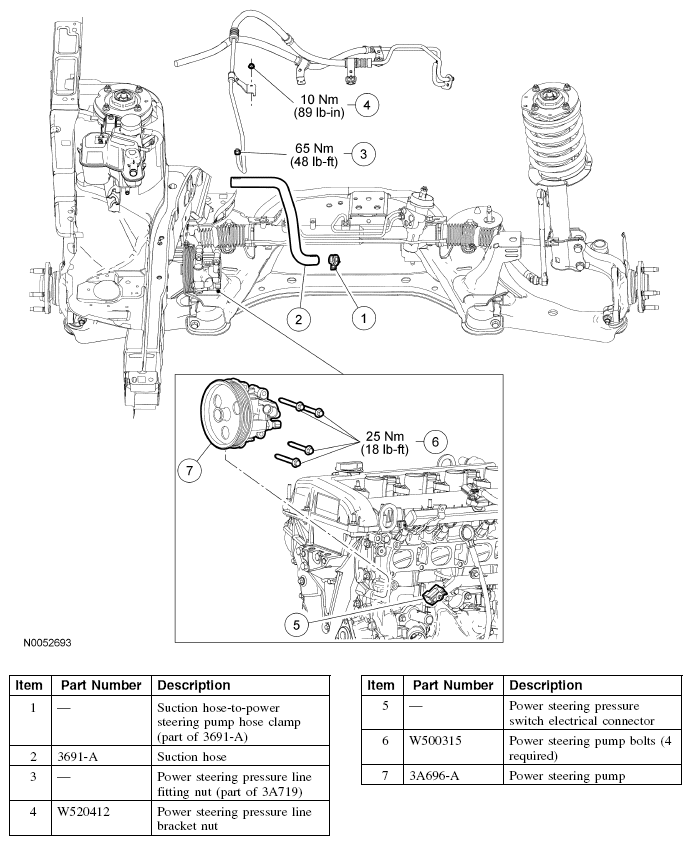

Fig 1: Power Steering Pump - 2.3L Torque Specifications
G04617783
