Wiper Switch
WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

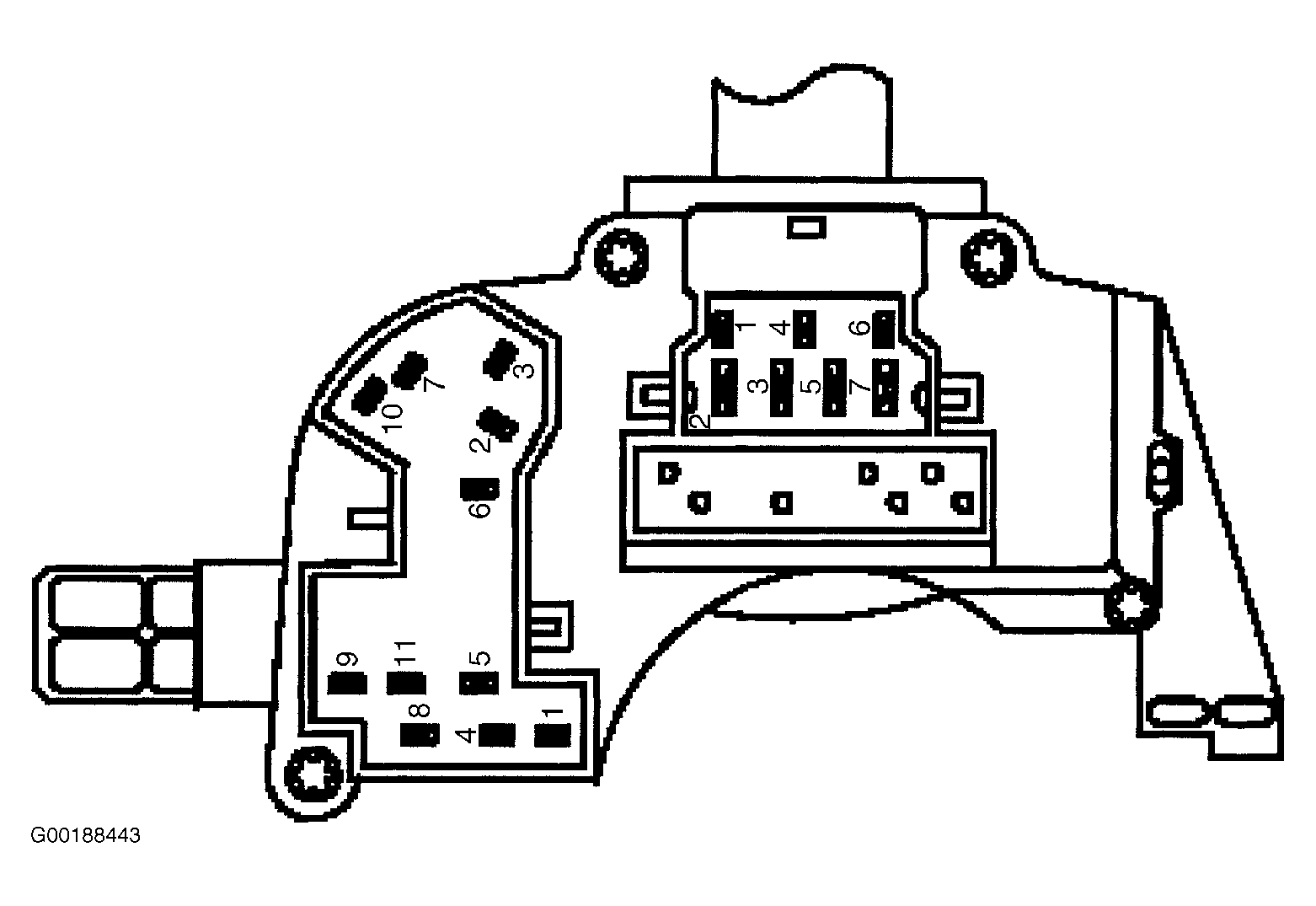

Wiper switch is incorporated into multifunction switch on steering column and is not serviced separately. Replace multifunction switch if resistance is not as specified. See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION. Disconnect harness connectors. Measure resistance between multifunction switch terminals. See WIPER SWITCH RESISTANCE TEST table. See Figure.
WIPER SWITCH RESISTANCE TEST
| Switch Position | Switch Terminals No. | (1) Ohms | |||||
|---|---|---|---|---|---|---|---|
| OFF | 1 & 4 | 953 | |||||
| INT | 1 & 4 | 1910 | |||||
| LOW | 1 & 4 | 402 | |||||
| HIGH | 1 & 4 | 0 | |||||
| INT (2) | |||||||
| MIN | 4 & 6 | 2670 | |||||
| MAX | 4 & 6 | 249 | |||||
| WASH | |||||||
| ON | 4 & 6 | 0 | |||||
| OFF | 4 & 6 | 103.3 | |||||
|
|||||||
