Speed Control Actuator: Removal

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Press the locking tab and rotate the speed control cable cap to remove.

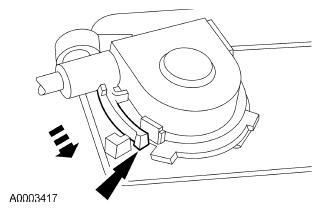

Fig 1: Removing Speed Control Cable Cap
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the speed control actuator pulley.
1. Gently push the retaining spring.
2. Disconnect the speed control cable slug from the speed control actuator pulley.

  Fig 2: Disconnecting Speed Control Cable From Speed Control Actuator Pulley
  Courtesy of FORD MOTOR CO.
Remove the 3 speed control actuator screws and the speed control actuator.
- Disconnect the electrical connector.
