Powertrain Calibration Information

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

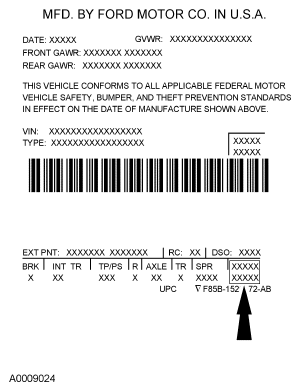

Fig 1: Identifying Powertrain Calibration Information Codes

Courtesy of FORD MOTOR CO.

NOTE: Powertrain calibration information is limited to a maximum of 5 characters per line on the Vehicle Certification Label. Because of this, calibration identification consisting of more than 5 characters will wrap to the second line on the VC label.

Powertrain calibration information is printed in the lower right corner of the Vehicle Certification Label. Only the base calibration information is printed. Revision levels will not appear, however, they can be found in On Line Automotive Service Information System (OASIS). For the current model year, Ford Motor Company is using 3 different protocols which describe powertrain base calibration. These protocols are designed to provide worldwide standardization for vehicle calibration. If the electronic calibration strategy has been used since 1998 and carried into the current model year, Protocol 1 will be used. Refer to Protocol 1 below. If the electronic calibration strategy has been used since 1999 and is carried into the current model year, Protocol 2 will be used. Refer to Protocol 2 below. For electronic calibration strategies introduced in 2000 or later model years, Protocol 3 will be used. Refer to Protocol 3 below.

Protocol 1

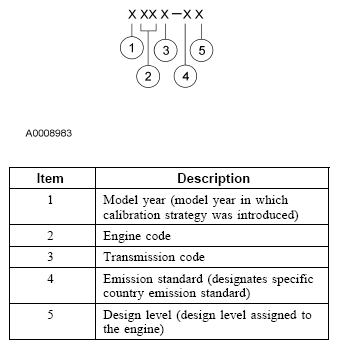

Fig 2: Identifying Protocol 1

Courtesy of FORD MOTOR CO.

Protocol 2

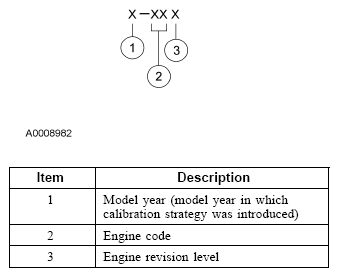

Fig 3: Identifying Protocol 2

Courtesy of FORD MOTOR CO.

Protocol 3

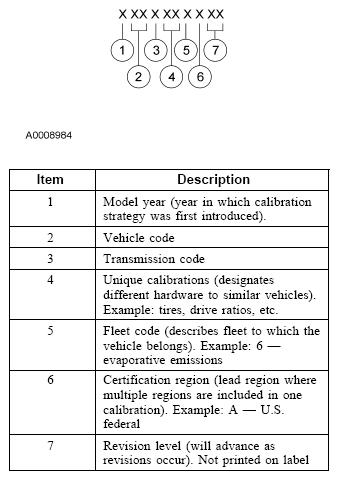

Fig 4: Identifying Protocol 3

Courtesy of FORD MOTOR CO.
