Cylinder Head: Assembly

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the valve stem seal.

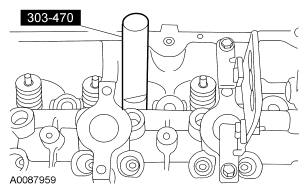

    Fig 1: Identifying Special Tool
    G04655913Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the special tools, install the valve spring, retainer and key.

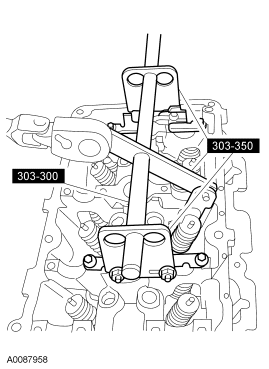

    Fig 2: Identifying Special Tools (303-300 And 303-350)
    G03898516Courtesy of FORD MOTOR CO.
  4. Install the hydraulic lash adjusters.
