Engine Support Insulators - RH: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04655731Courtesy of FORD MOTOR CO.
3-Bar Engine Support Kit 303-F072
G04655732Courtesy of FORD MOTOR CO.
Lifting Brackets, Engine 134-00243 or equivalent

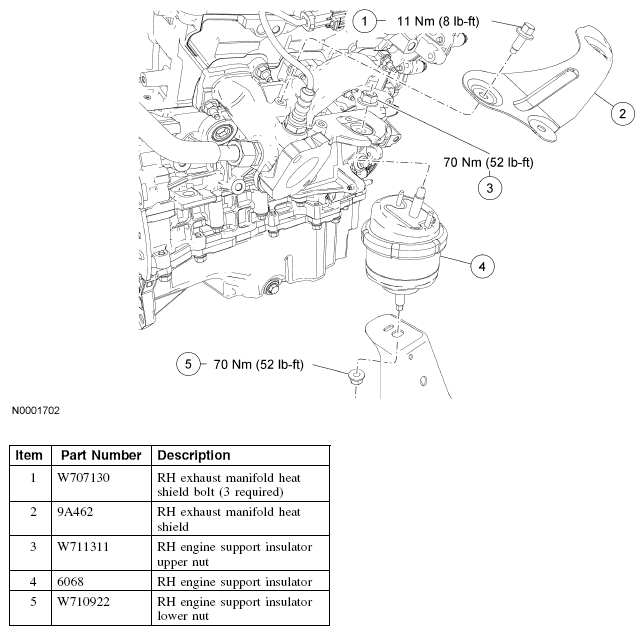

Fig 1: Engine Support Insulator Replacement Components - RH With Torque Specifications
G04655733Courtesy of FORD MOTOR CO.
