Oil Pump: Installation
WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Position the oil pump and install the bolts.

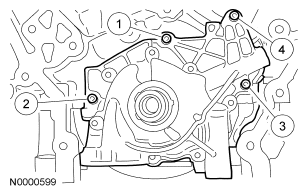

- Tighten in the sequence shown to 10 N.m (89 lb-in).
- Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW , OIL PUMP SCREEN and PICKUP TUBE .
- Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
