WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
Item
Specification
Threadlock and Sealer TA-25
WSK-M2G351-A5
Fig 1: Upper Intake Manifold Replacement Components (1 Of 3) With Torque Specifications
Courtesy of FORD MOTOR CO.

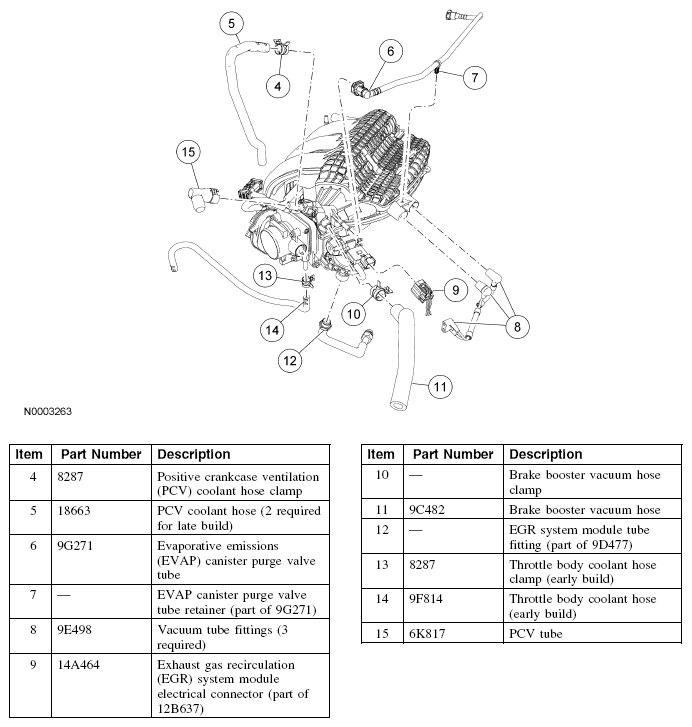

Fig 2: Identifying Upper Intake Manifold Components (2 Of 3)
Courtesy of FORD MOTOR CO.

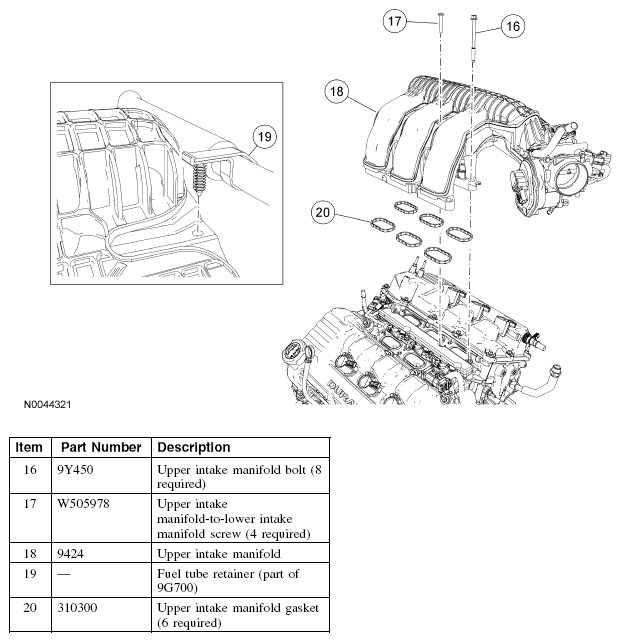

Fig 3: Identifying Upper Intake Manifold Components (3 Of 3)
