Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A or WSS-M6C62-A

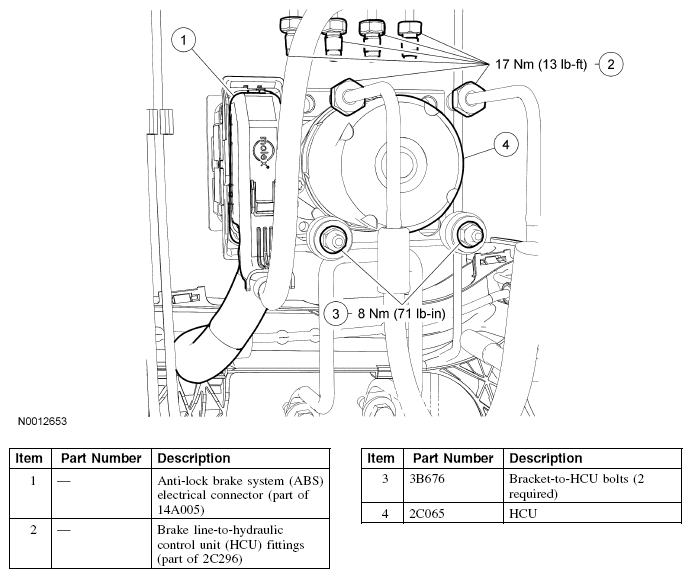

Fig 1: Hydraulic Control Unit (HCU) Replacement Components With Torque Specifications
G04655507Courtesy of FORD MOTOR CO.
