Driver Seat Module (DSM): Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04658471Courtesy of FORD MOTOR CO.
 Heavy-Duty Riveter 501-D011 (D80L-23200-A)

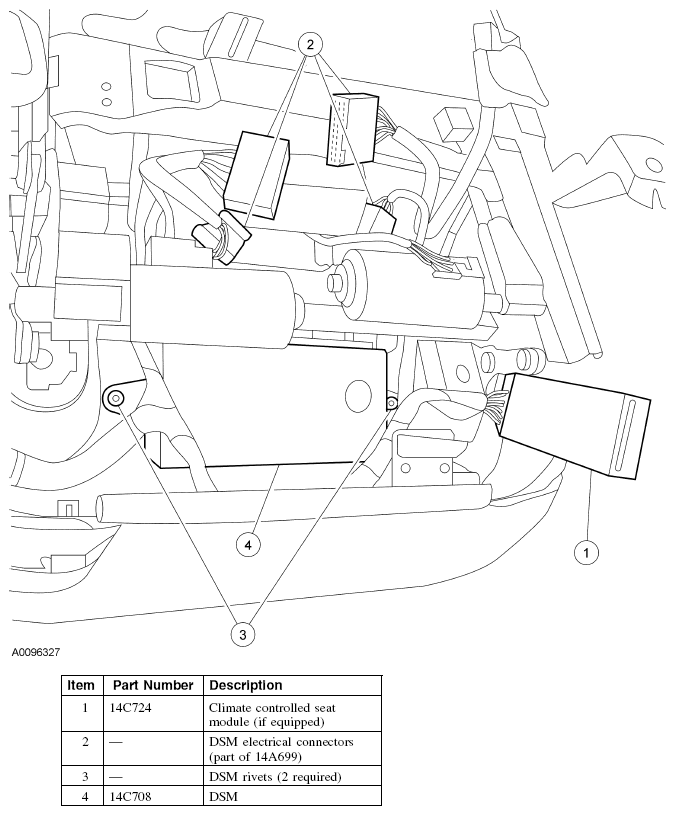

Fig 1: Identifying Driver Seat Module (DSM) Components
G04658472Courtesy of FORD MOTOR CO.
