Engine Coolant Temperature (ECT) Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

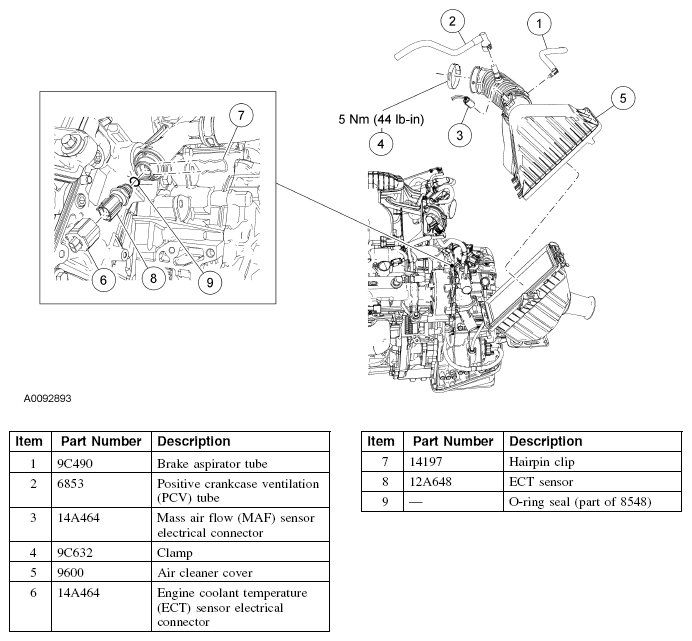

Fig 1: Engine Coolant Temperature (ECT) Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
