Seat - Exploded View, Front

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Front Seat Backrest

NOTE: Passenger seat shown, driver seat similar.

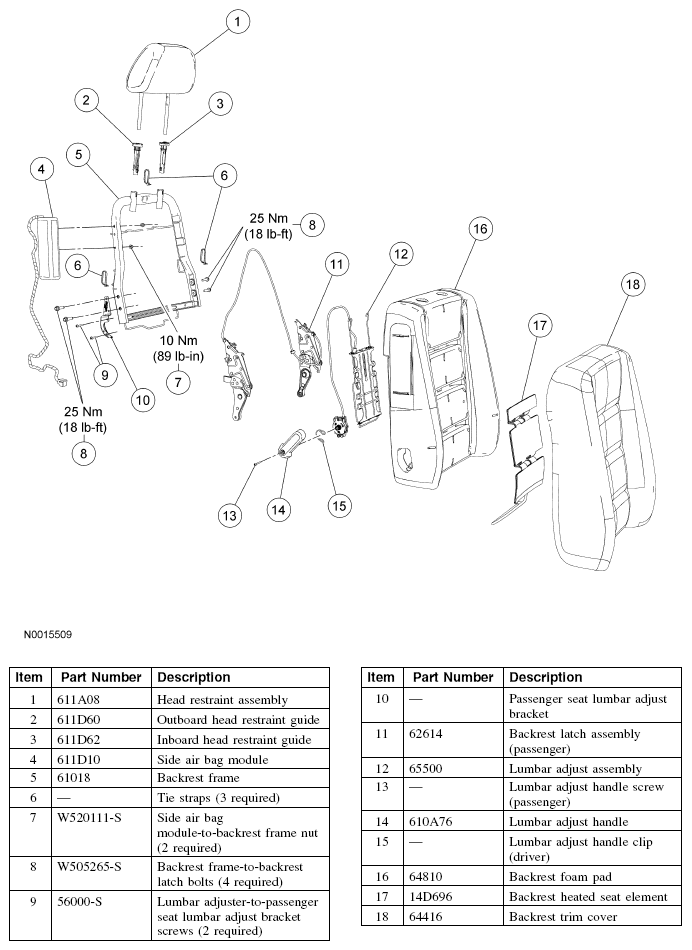

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications
G04658715Courtesy of FORD MOTOR CO.

Driver Front Seat Cushion

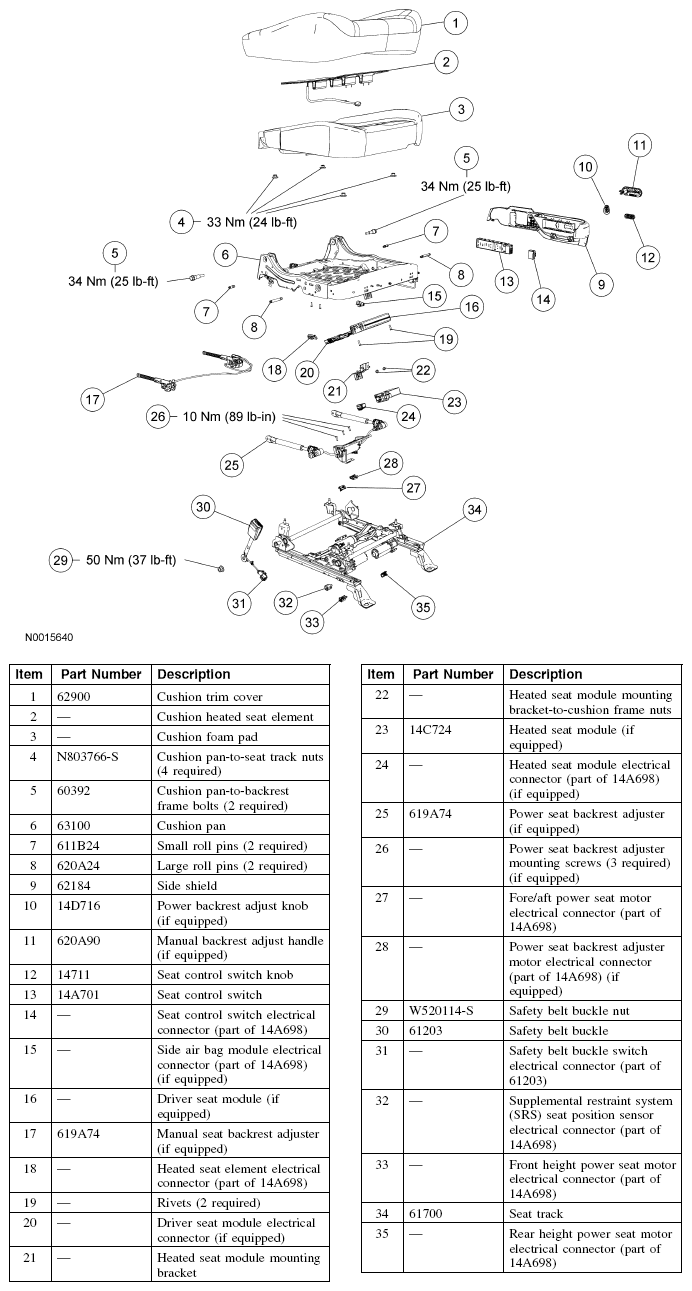

Fig 2: Driver Front Seat Cushion Replacement Components With Torque Specifications
G04658716Courtesy of FORD MOTOR CO.

Passenger Front Seat Cushion

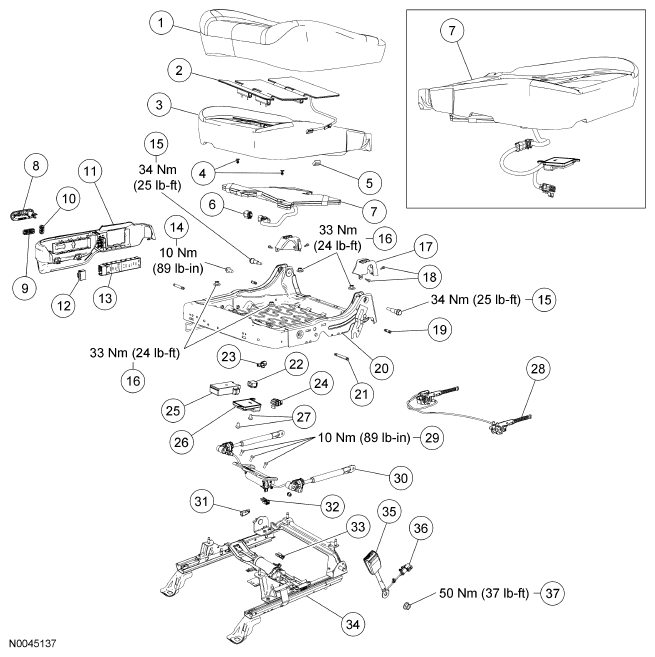

Fig 3: Passenger Front Seat Cushion Replacement Components With Torque Specifications
G04658717Courtesy of FORD MOTOR CO.

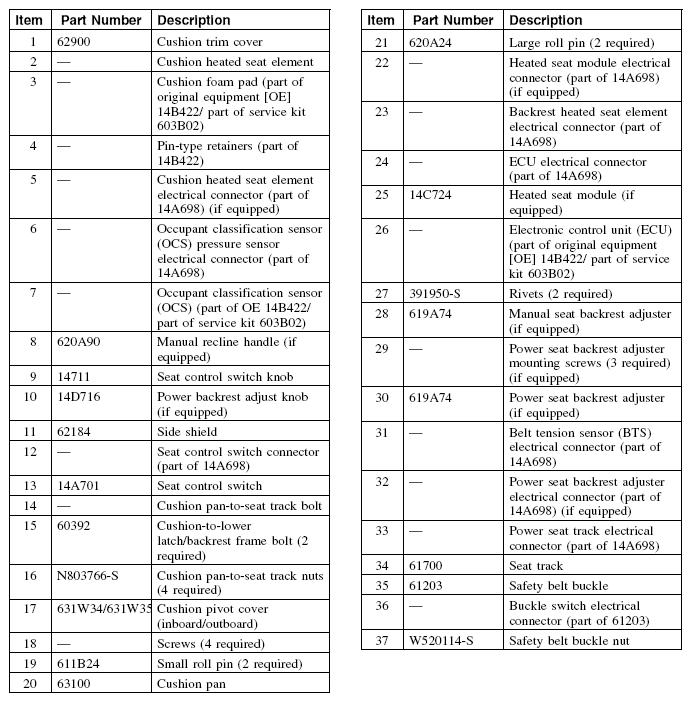

Fig 4: Identifying Passenger Front Seat Cushion Components With Components Description
G04658718Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
