Seat - Exploded View, Third Row

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

50 Percent Backrest

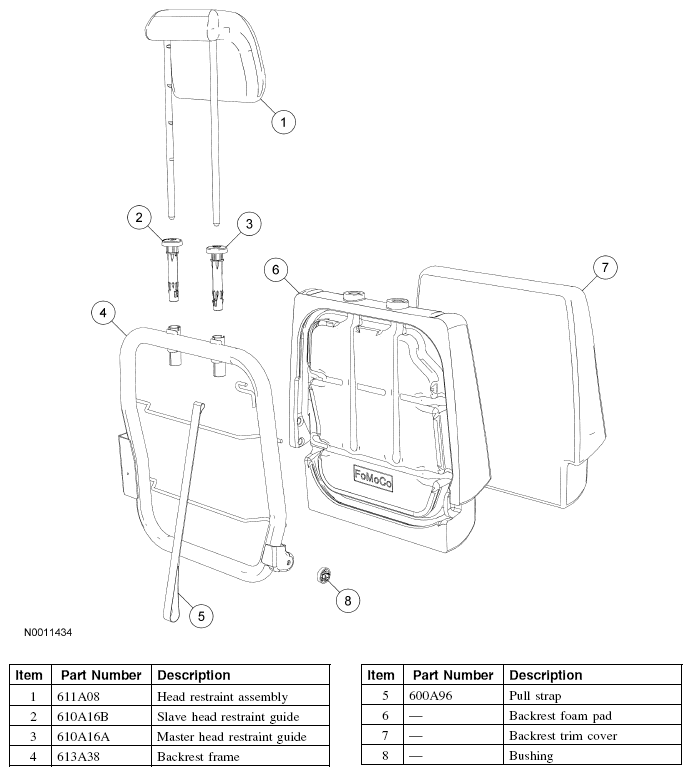

Fig 1: Seat - Third Row (50 Percent Backrest) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Bench Seat Backrest

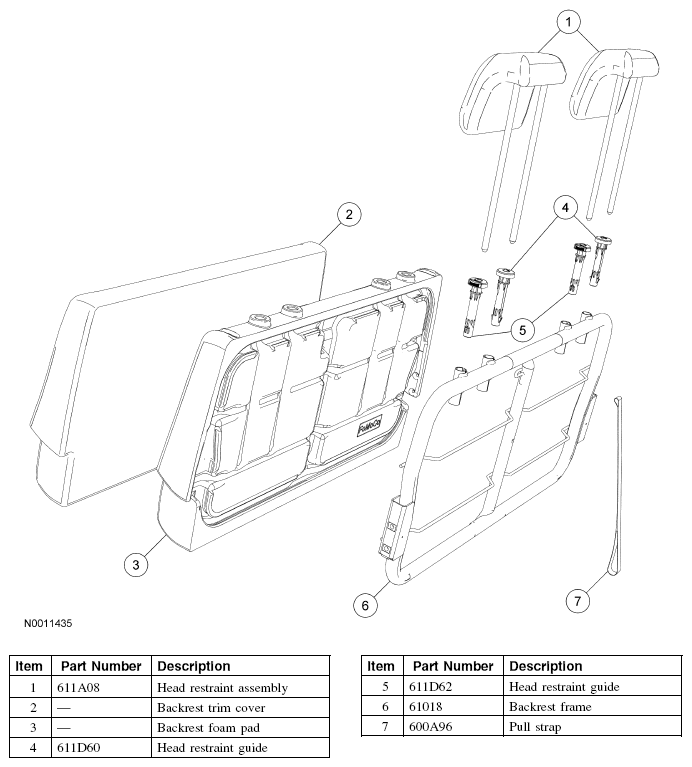

Fig 2: Seat - Third Row (Bench Seat Backrest) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

50 Percent Cushion

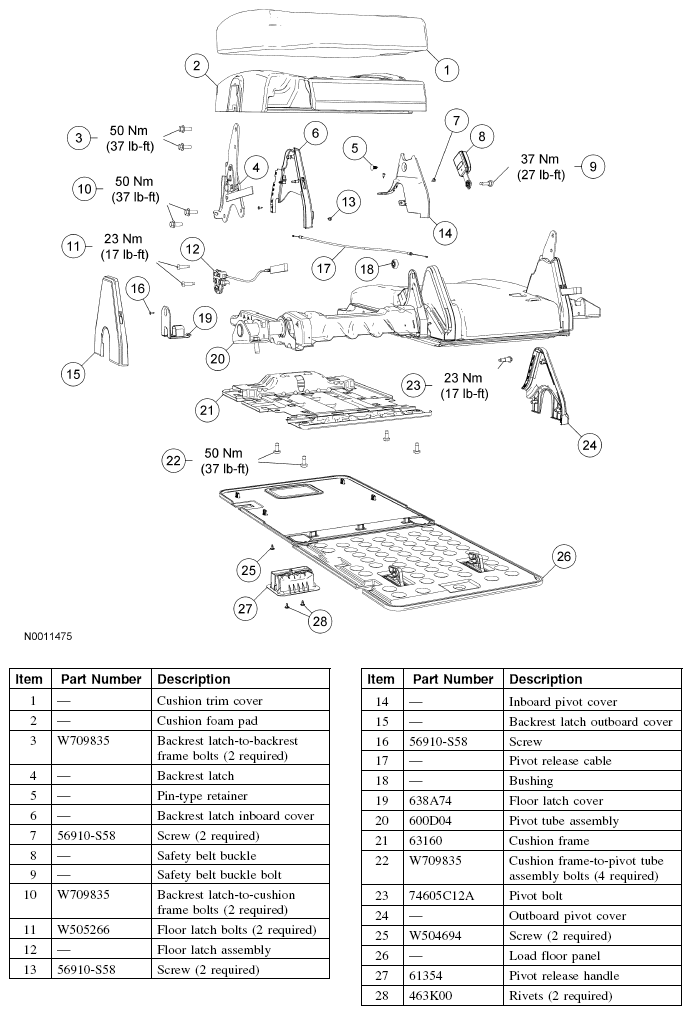

Fig 3: Seat - Third Row (50 Percent Cushion) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Bench Seat Cushion

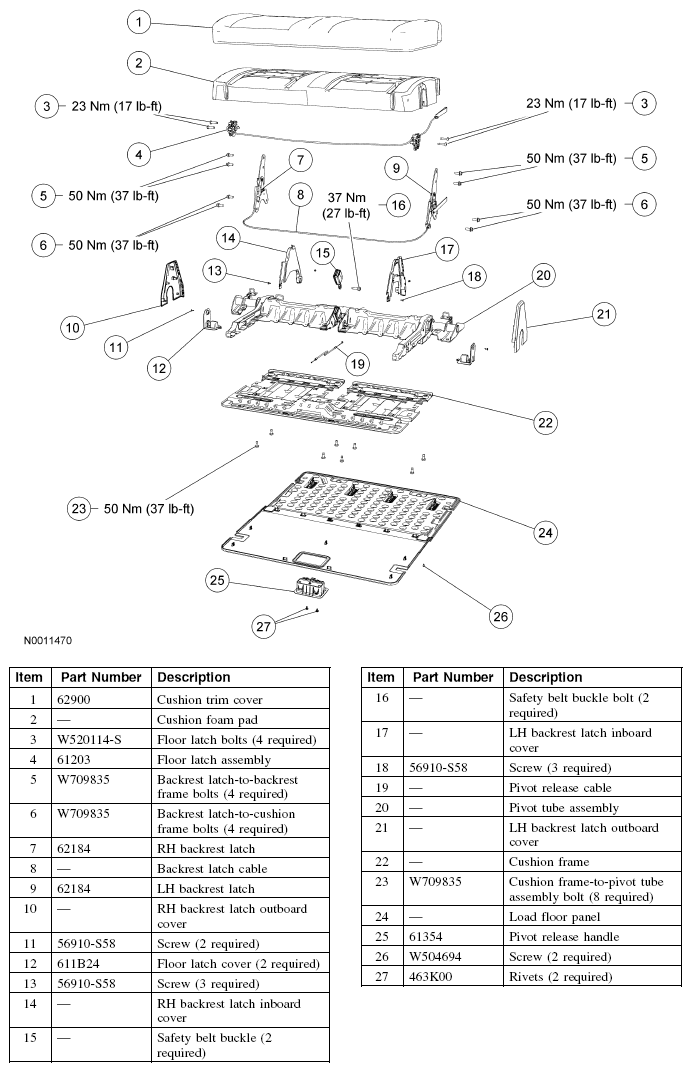

Fig 4: Seat - Third Row (Bench Seat Cushion) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
