Cylinder Block Distortion

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) CHART

Courtesy of FORD MOTOR CO.	Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent
Courtesy of FORD MOTOR CO.	Straight Edge 303-D039 (D83L-4201-A) or equivalent

Use a straight edge and a feeler gauge to inspect the cylinder block for flatness.
- For additional information, refer to the General Specification chart in the appropriate engine article.
- If out of specification, install a new short block assembly. Refer to the appropriate article for the procedure.

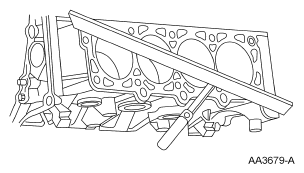

  Fig 1: Checking Cylinder Block For Flatness
  Courtesy of FORD MOTOR CO.
