Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

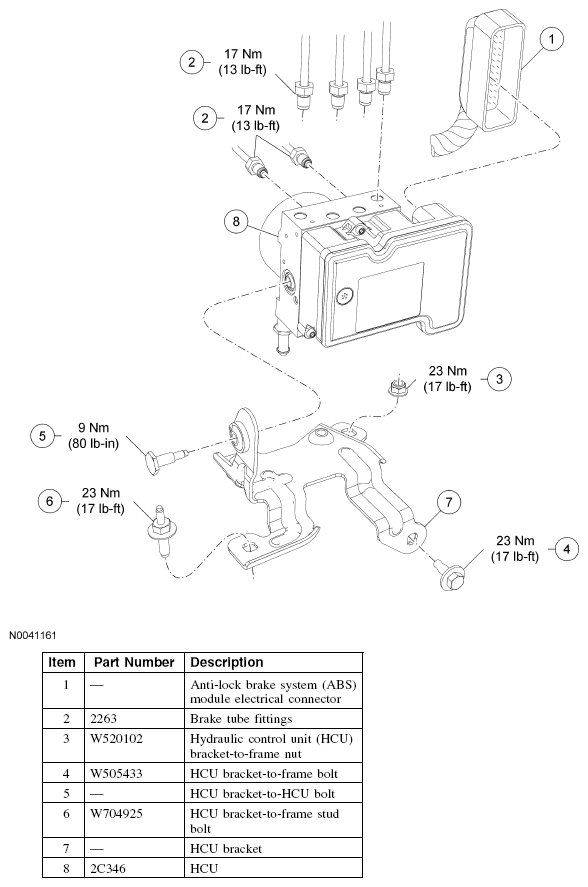

Fig 1: Hydraulic Control Unit (HCU) Replacement Components With Torque Specifications
G04679817Courtesy of FORD MOTOR CO.
