Selector Lever Cable: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the heater core and evaporator core housing. For additional information, refer to CLIMATE CONTROL .
Remove the restraint control module (RCM). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

6 speed transaxle

Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the selector lever cable end from the manual lever.

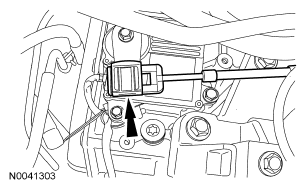

Fig 1: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Release the 2 tabs and remove the selector lever cable from the selector lever cable bracket.

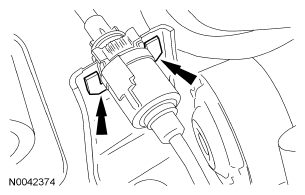

Fig 2: Locating Tabs
Courtesy of FORD MOTOR CO.

FNR5 transaxle

Disconnect the selector lever cable end from the manual lever.

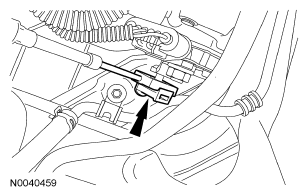

Fig 3: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Release the 2 tabs and remove the selector lever cable from the selector lever cable bracket.

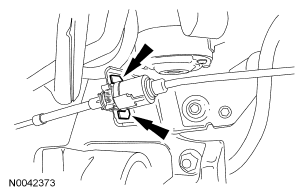

Fig 4: Locating Selector Lever Cable Locking Tabs
Courtesy of FORD MOTOR CO.

All vehicles

Disconnect the 2 wiring harness fasteners and position the RCM wiring harness aside.

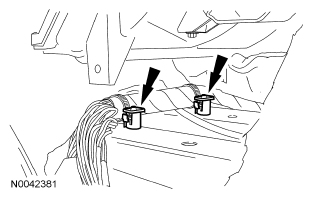

Fig 5: Locating Wiring Harness Fasteners
Courtesy of FORD MOTOR CO.
Position the insulation away from the bulkhead to gain access to the 2 selector lever cable bracket nuts.

Fig 6: Locating Insulation
Courtesy of FORD MOTOR CO.
Remove the 2 selector lever cable grommet nuts and remove the selector lever cable through the interior of the vehicle.

Fig 7: Locating Selector Lever Cable Grommet Nuts
Courtesy of FORD MOTOR CO.
