Auxiliary Coolant Flow Pump: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

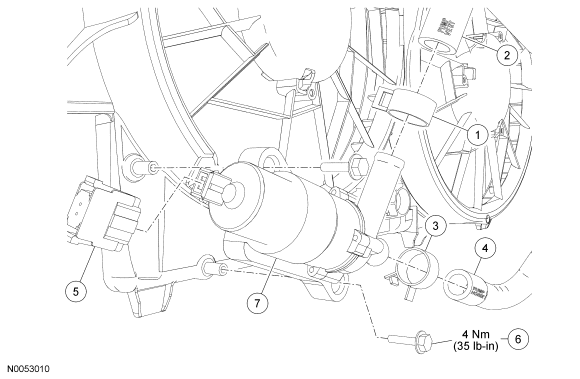

| Item | Part Number | Description |
|---|---|---|
| 1 | W527362 | Clamp |
| 2 | 18C553 | Heater core to auxiliary coolant flow pump hose |
| 3 | W527362 | Clamp |
| 4 | 18K580 | Auxiliary coolant flow pump to bypass tube hose |
| 5 | - | Auxiliary coolant flow pump electrical connector |
| 6 | N806181 | Auxiliary coolant flow pump bolt (2 required) |
| 7 | 8C419 | Auxiliary coolant flow pump |
