Clutch Pedal: Notes
WARNING: This page is about a different car, the 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

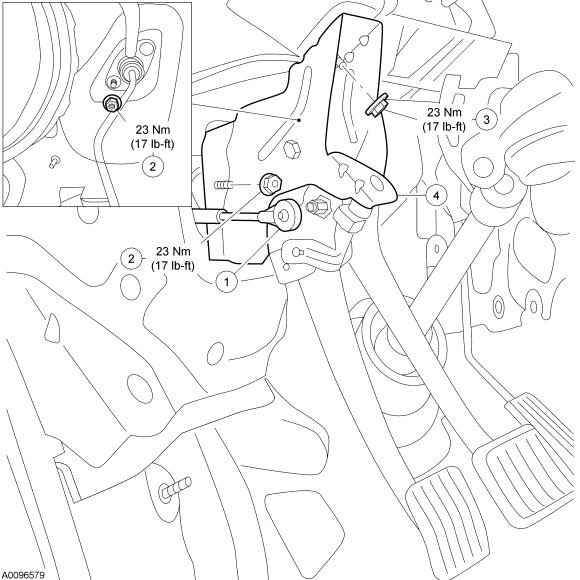

| Item |
Part Number |
Description |
| 1 |
- |
Master cylinder push rod (part of 7A543) |
| 2 |
W520413-S437 |
Clutch master cylinder nuts (2 required) |
| 3 |
W707144-S438 |
Clutch pedal bracket nut |
| 4 |
7B633 |
Clutch pedal and bracket assembly |
