Wheel Speed Sensor - Rear: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

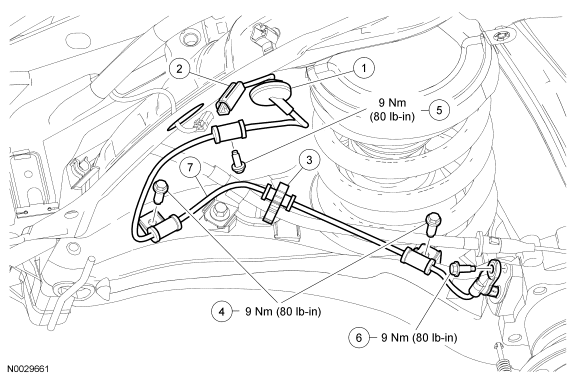

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Grommet (part of 2C190) |
| 2 | - | Rear wheel speed sensor electrical connector |
| 3 | - | Rear wheel speed sensor harness retainer |
| 4 | W506410 | Rear wheel speed sensor harness bolts (2 required) |
| 5 | W707399 | Rear wheel speed sensor harness bolt |
| 6 | W506410 | Rear wheel speed sensor bolt |
| 7 | 2C190 | Rear wheel speed sensor |
