Checking Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, 2004 Ford Crown Victoria, 2003 Mercury Marauder, and 2003 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle ride height can only be measured accurately after accurate trim test has been performed using New Generation Star (NGS) tester, or equivalent scan tool. See appropriate ELECTRONIC article in SUSPENSION. To calculate ride height, see Fig 1 and Fig 2 . For ride height specifications, see Fig 3 . If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.

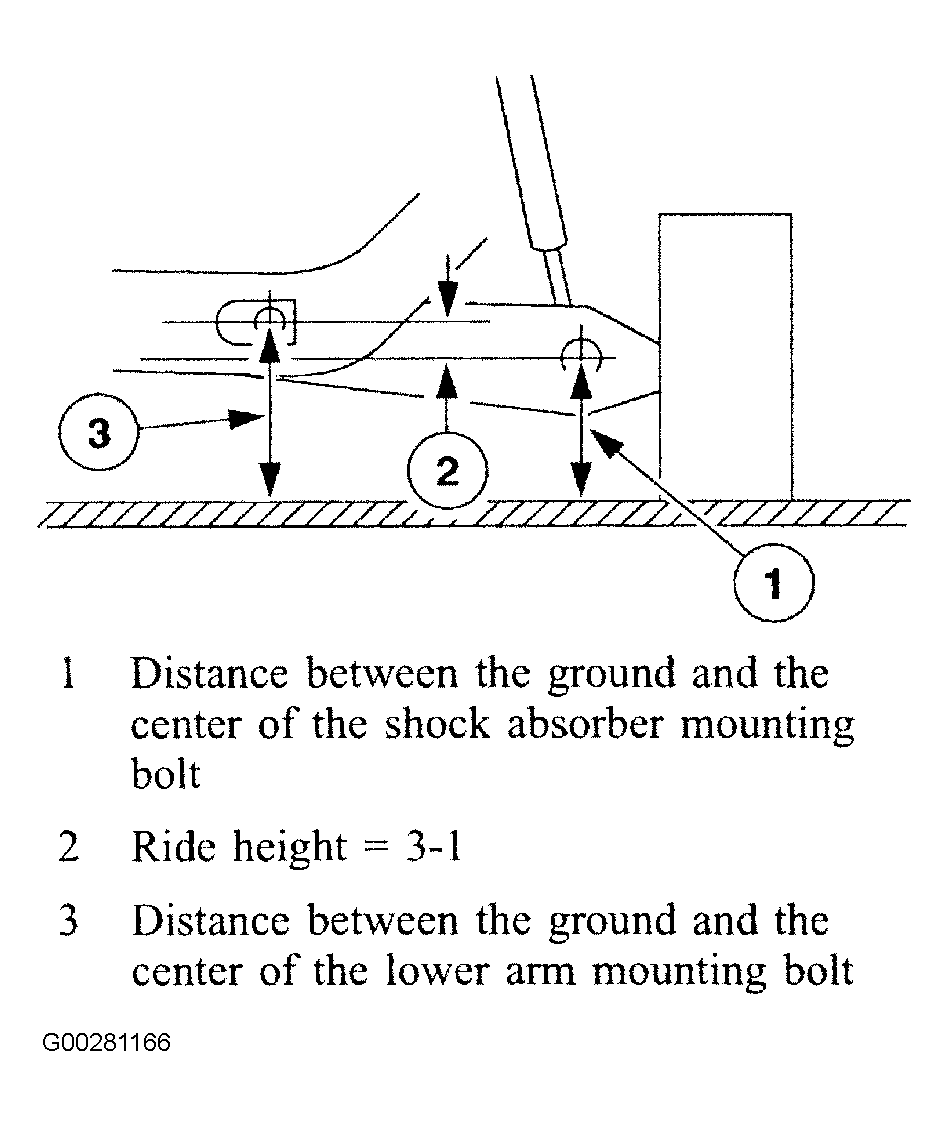

Fig 1: Front Ride Height Measurement

Courtesy of FORD MOTOR CO.

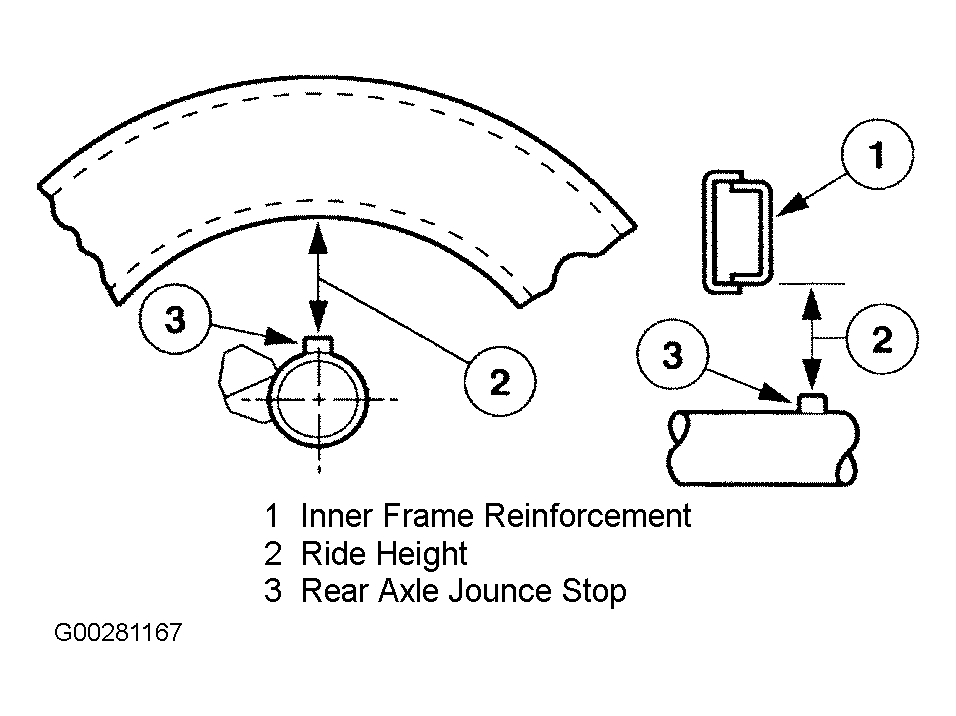

Fig 2: Rear Ride Height Measurement

Courtesy of FORD MOTOR CO.

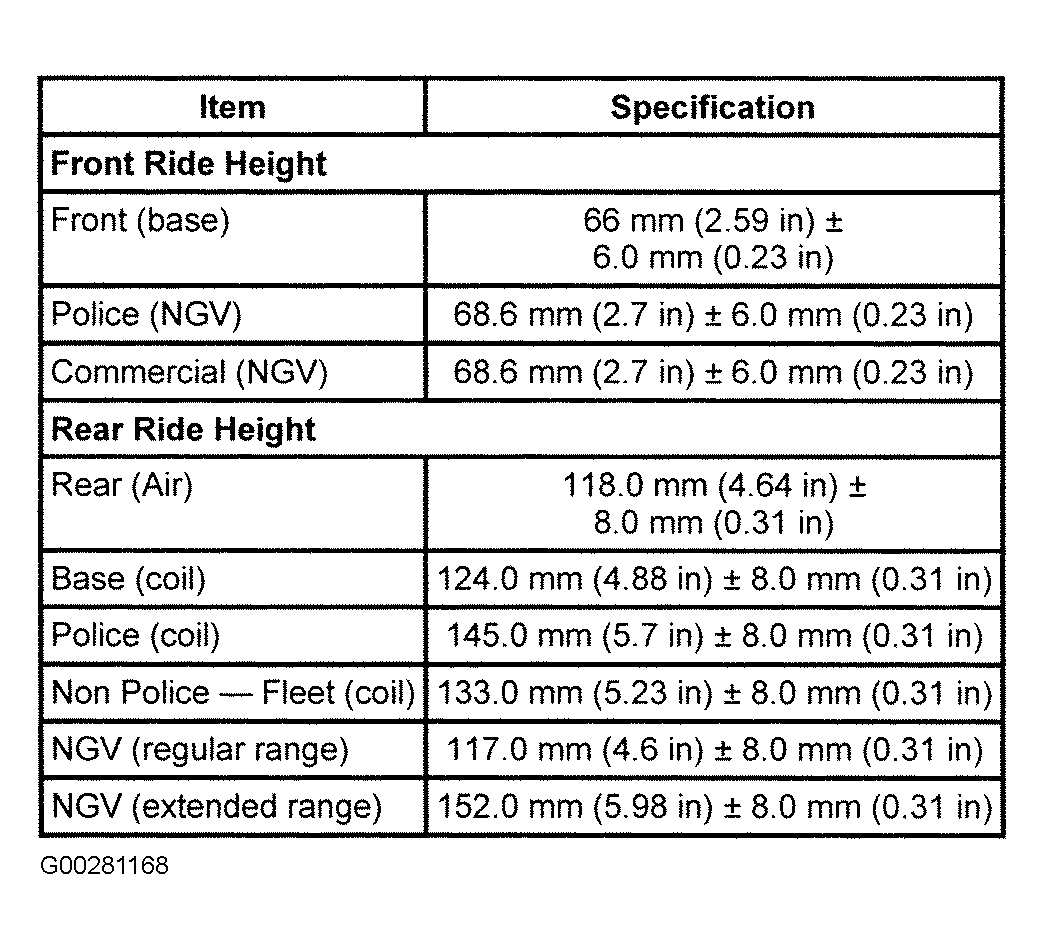

Fig 3: Ride Height Specifications

Courtesy of FORD MOTOR CO.
