Camber Adjustment: Front
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, 2004 Ford Crown Victoria, 2003 Mercury Marauder, and 2003 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

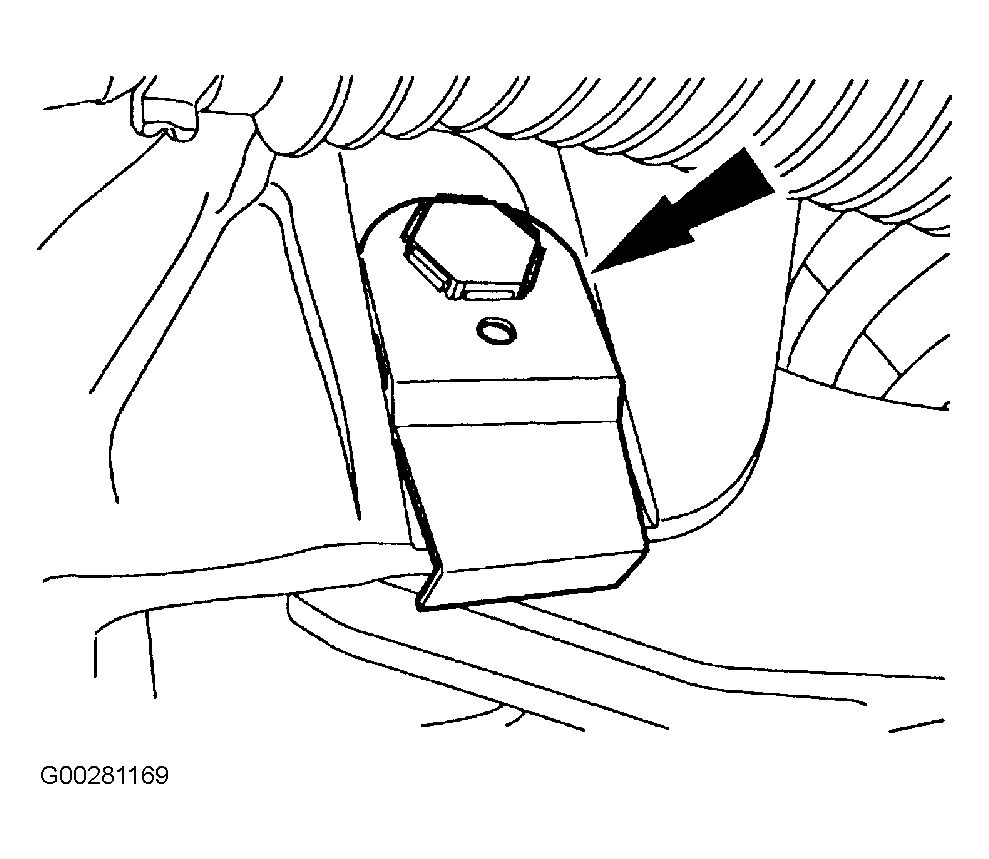

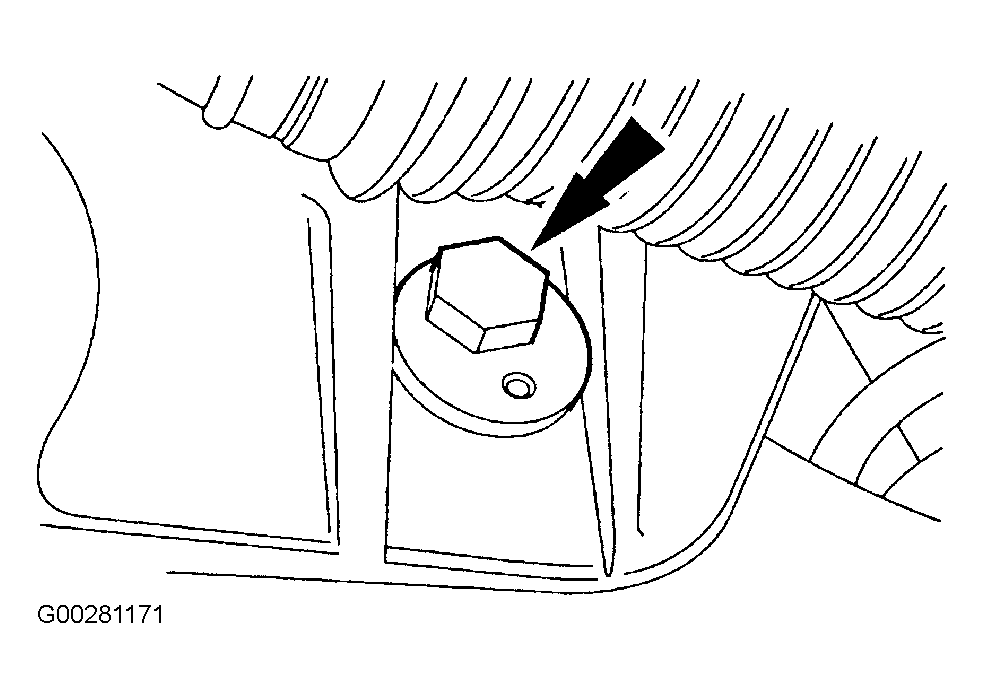

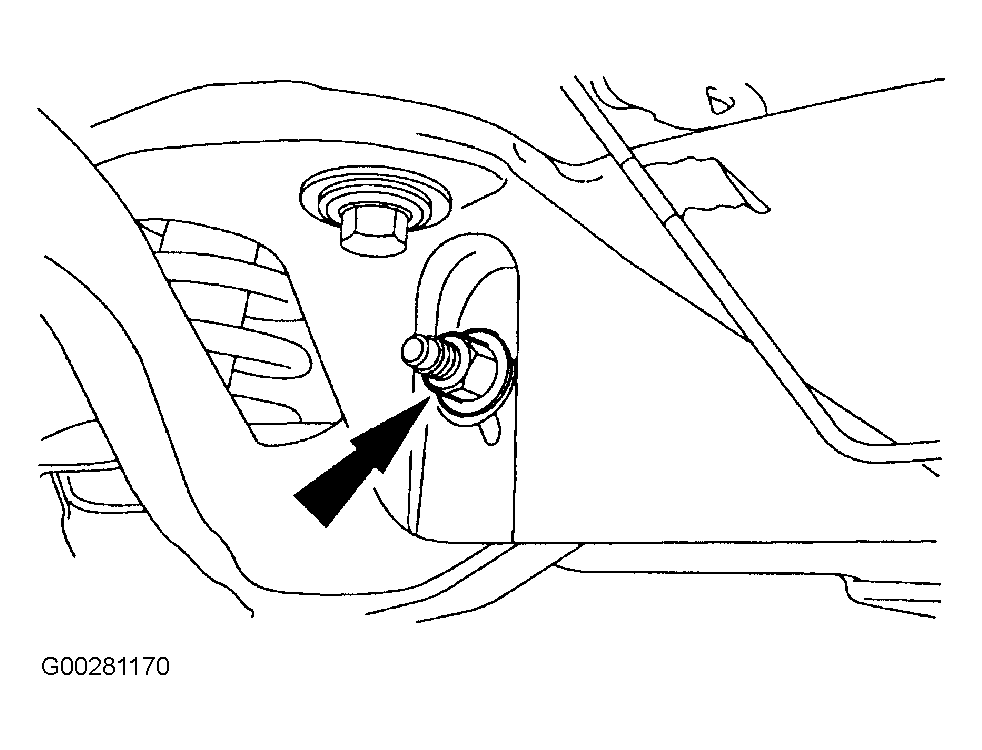

- If necessary, remove and discard the cam bolt retainer flag. See Fig 1 . Loosen the cam bolt nut. See Fig 2 . Rotate the cam bolt to adjust camber. See Fig 3 .
- While holding the cam bolt, tighten the nut to specification. See TORQUE SPECIFICATIONS . Recheck the camber, caster and toe, and adjust as needed.
