Anti-Lock Brake System (ABS) Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

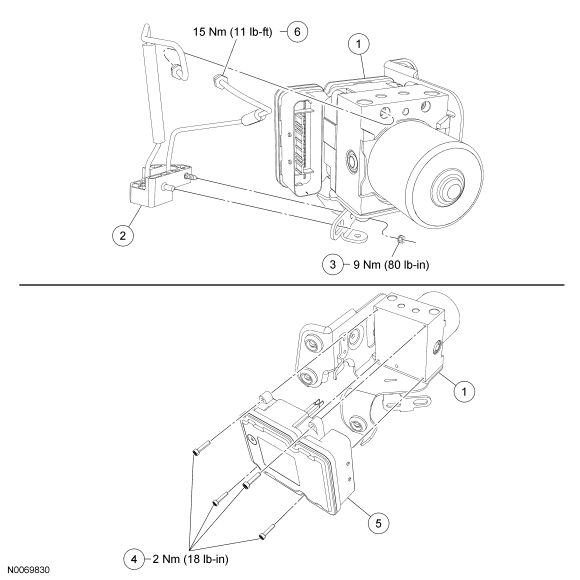

| Item | Part Number | Description |
|---|---|---|
| 1 | 2C215 | Hydraulic control unit (HCU) |
| 2 | 2C296 | Jumper tube assembly |
| 3 | W710899 | Jumper tube assembly bracket nut |
| 4 | 2M101 | ABS module screws (4 required) |
| 5 | 2C215 | ABS module |
| 6 | - | Jumper tube fitting (part of 2C296) |
