Wheel Speed Sensor - Front: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

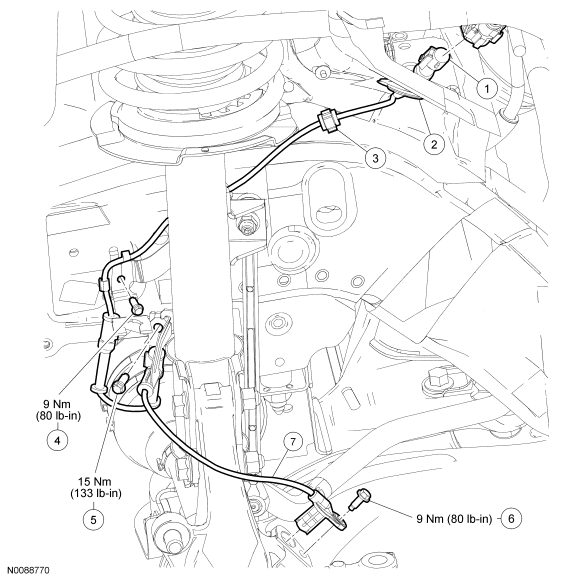

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front wheel speed sensor electrical connector (part of 2C204) |
| 2 | - | Grommet (part of 2C204) |
| 3 | - | Front wheel speed sensor harness retainer (part of 2C204) |
| 4 | W707399 | Front wheel speed sensor harness-to-body bolt |
| 5 | W709072 | Front wheel speed sensor harness-to-strut bolt |
| 6 | 3C293 | Front wheel speed sensor bolt |
| 7 | 2C204 | Front wheel speed sensor |
