Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

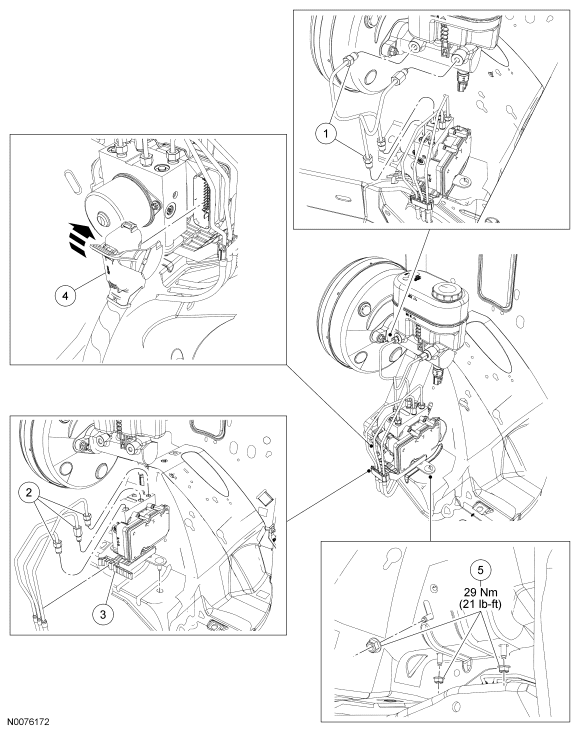

Fig 1: Exploded View Of Hydraulic Control Unit (HCU) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2M022	Master cylinder brake tube fittings (4 required)
2	-	Brake caliper-to-Hydraulic Control Unit (HCU) tube fittings (part of 2234)
3	2D031	Brake tube clip
4	-	ABS module electrical connector (part of 12A581)
5	W712487	HCU bracket-to-inner fender well nuts (3 required)
