2.5L and 3.0L Vehicles
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

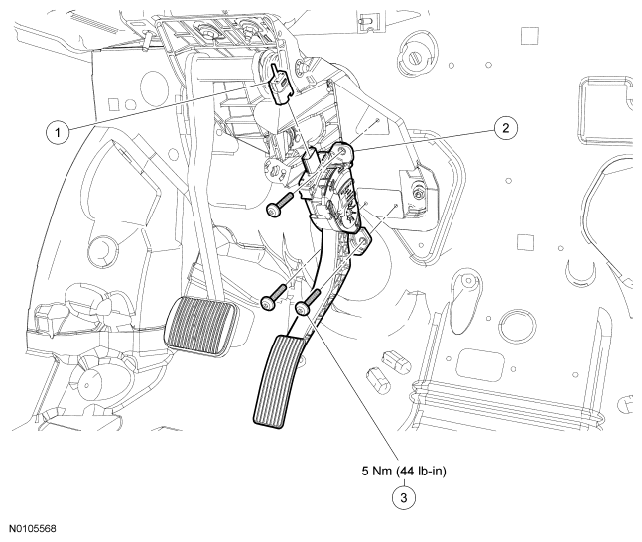

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
14A464 |
Accelerator pedal electrical connector |
| 2 |
9F836 |
Accelerator pedal and sensor assembly |
| 3 |
W714332 |
Accelerator pedal self-tapping screw (3 required) |
