Ambient Lighting Switch: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

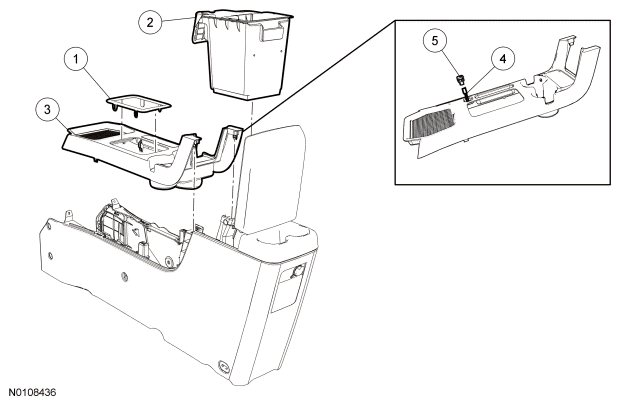

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
7E391 |
Selector lever trim ring |
| 2 |
- |
Floor console storage bin |
| 3 |
045A76 |
Floor console finish panel |
| 4 |
- |
Ambient lighting switch electrical connector (part of 14D375) |
| 5 |
- |
Ambient lighting switch |
