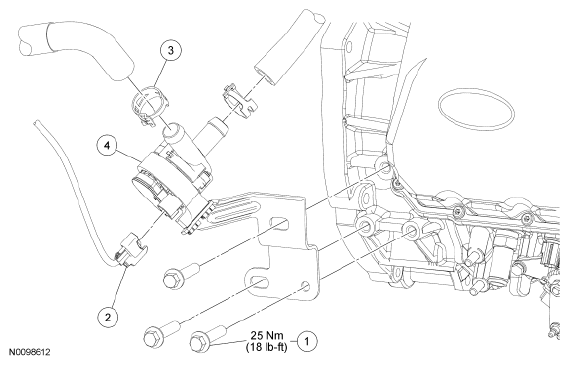

Auxiliary Coolant Flow Pump: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500233 |
Auxiliary coolant flow pump bracket bolt (3 required) |
| 2 |
- |
Auxiliary coolant flow pump electrical connector (part of 19D649) |
| 3 |
8287 |
Heater hose clamp (2 required) |
| 4 |
18D473 |
Auxiliary coolant flow pump |
